ACCUD 119-024-12 DIGITAL CALIPER 600mm/24" ( jaw length 150mm ) UPPER JAWS, ABS ( 0.01mm/0.0005" )
Digital sliding gauge long with external and internal measuring contacts for general measurement… Read more
In stock 0 PCS
Order number: 119-024-12
Product description
Digital sliding gauge long with external and internal measuring contacts for general measurement with ABS system with a range of 0-600mm.
Measuring accuracy 0,06mm, CR2032 battery, data output - possibility to connect to PC via USB cable, made of stainless steel.

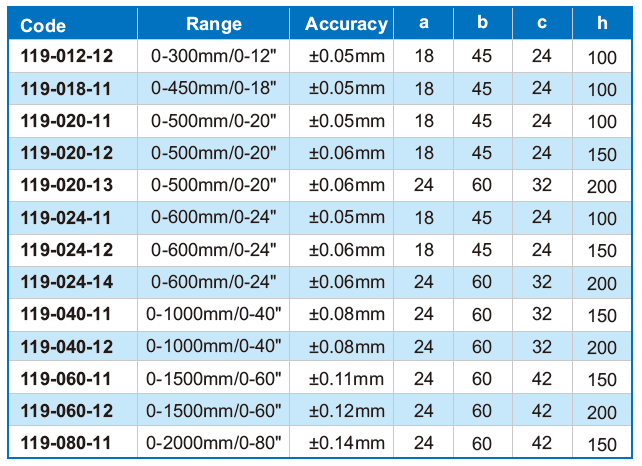

Technical specification:
- Measuring range: 0-600 mm (0-24")
- Resolution: 0.01mm/0.0005″
- Accuraccy : +/- 0,06mm
- Buttons: on/off, zero, mm/inch, ABS, data preset
- Data output: YES
- Made of stainless steel

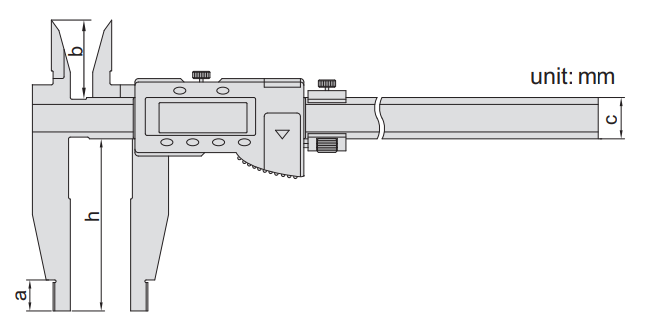

Dimensions:

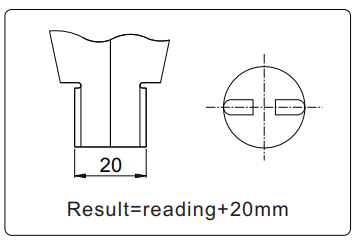

Adjustment of measuring arm correction for internal measurement:

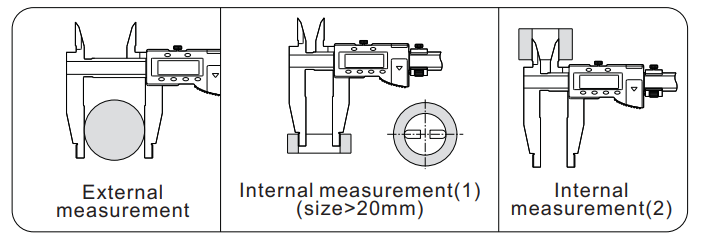

Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts sectionThis item is option of INSIZE type : 1136-602
