ACCUD 120-008-12S VERNIER CALIPER 200mm/8" "R" LOWER JAWS ( 0.02mm/0.001" )
Analog caliper 0-200 mm/0-8″ with a scale of 0.02mm/0.001".The caliper is equipped with a… Read more
In stock 0 PCS
At the manufacturer 0 PCS
Order number: 120-008-12S
Product description
Analog caliper 0-200 mm/0-8″ with a scale of 0.02mm/0.001".
The caliper is equipped with a scale for reading in metric and inches.
Thanks to the integrated wheel on the bottom of the slider, it is easy to operate. The gauge slider has a locking screw for secure fixation in the set position.
The caliper is also equipped with a depth gauge as standard. Compared to type 120, this type of caliper is characterized by rounded edges on the lower measuring arms.
The caliper is equipped with a scale for reading in metric and inches.
Thanks to the integrated wheel on the bottom of the slider, it is easy to operate. The gauge slider has a locking screw for secure fixation in the set position.
The caliper is also equipped with a depth gauge as standard. Compared to type 120, this type of caliper is characterized by rounded edges on the lower measuring arms.
Technical specification:
- Measuring range: 0-200 mm (0-8")
- Resolution: 0.02mm/0.001"
- Accuraccy : +/- 0,03mm
- Meet DIN862
- Satin chrome plated reading surface
- Made of stainless steel

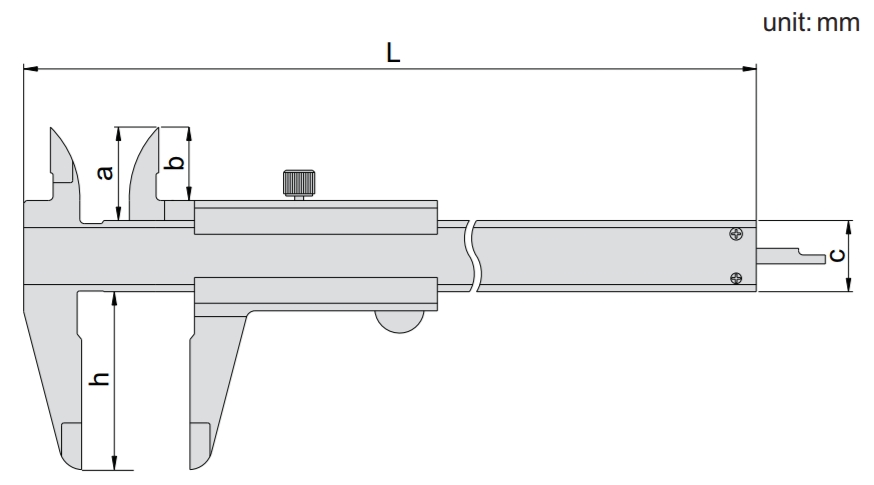

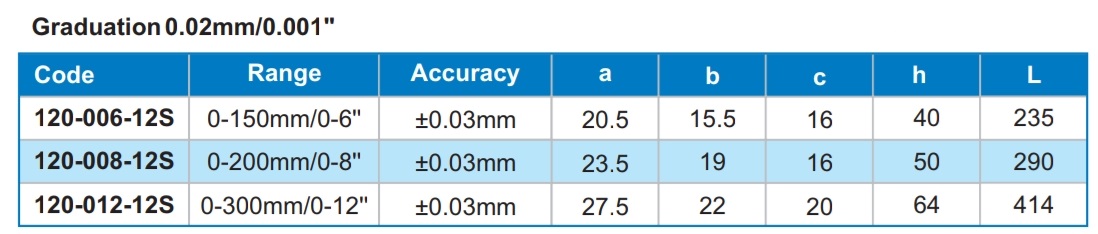

Dimensions:

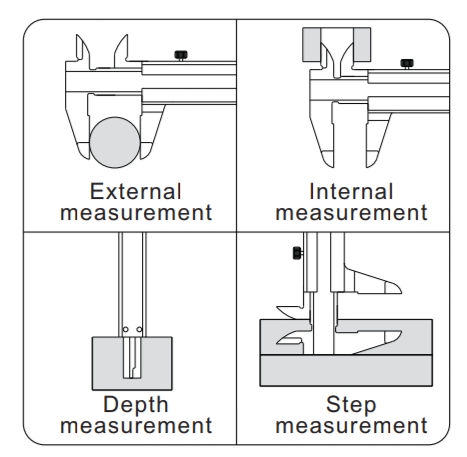

Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
