ACCUD 120-008-14 VERNIER CALIPER 200mm/8” ( 0.05mm/1/128" )
The analog caliper is equipped with a scale for reading in both metric and inch units.The… Read more
In stock 95 PCS
Order number: 120-008-14
Product description
The analog caliper is equipped with a scale for reading in both metric and inch units.
The integrated wheel on the bottom of the slider makes it easy to operate. The slider of the gauge has a locking screw for secure fixation in the set position.
The caliper is also equipped with a depth gauge as standard.
Technical specification:
- Measuring range: 0-200 mm (0-8")
- Resolution: 0.05mm/1/128"
- Accuraccy : +/- 0,03mm
- Meet DIN862
- Made of stainless steel

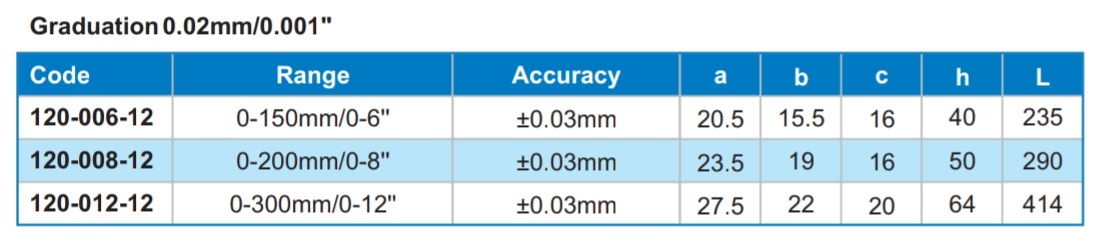

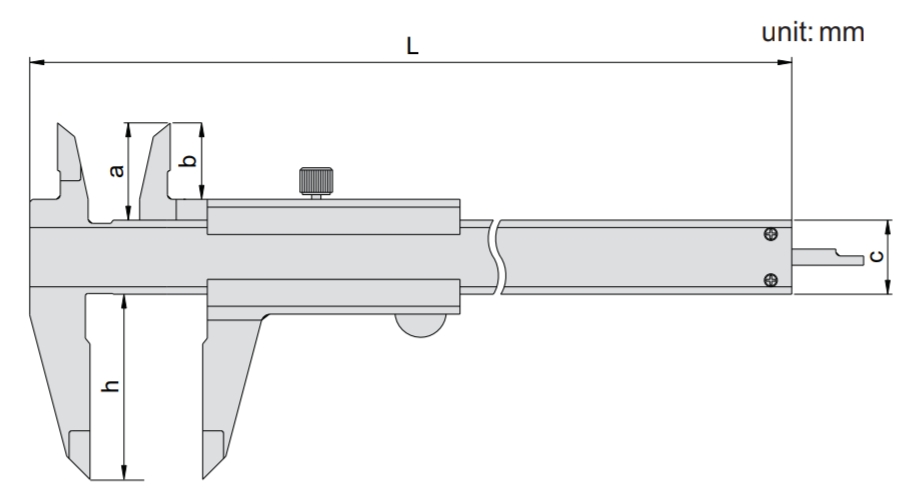

Dimensions:

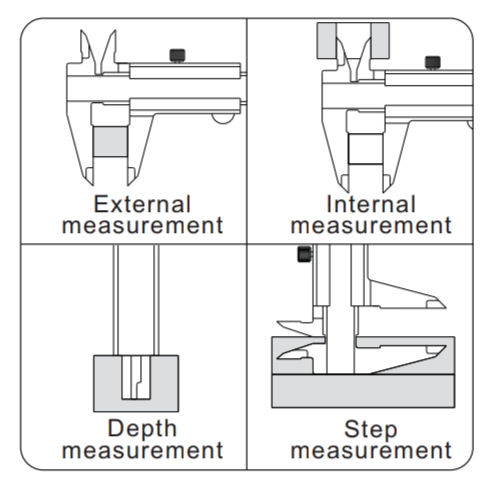

Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
This item is option of INSIZE type : 1205-200S
