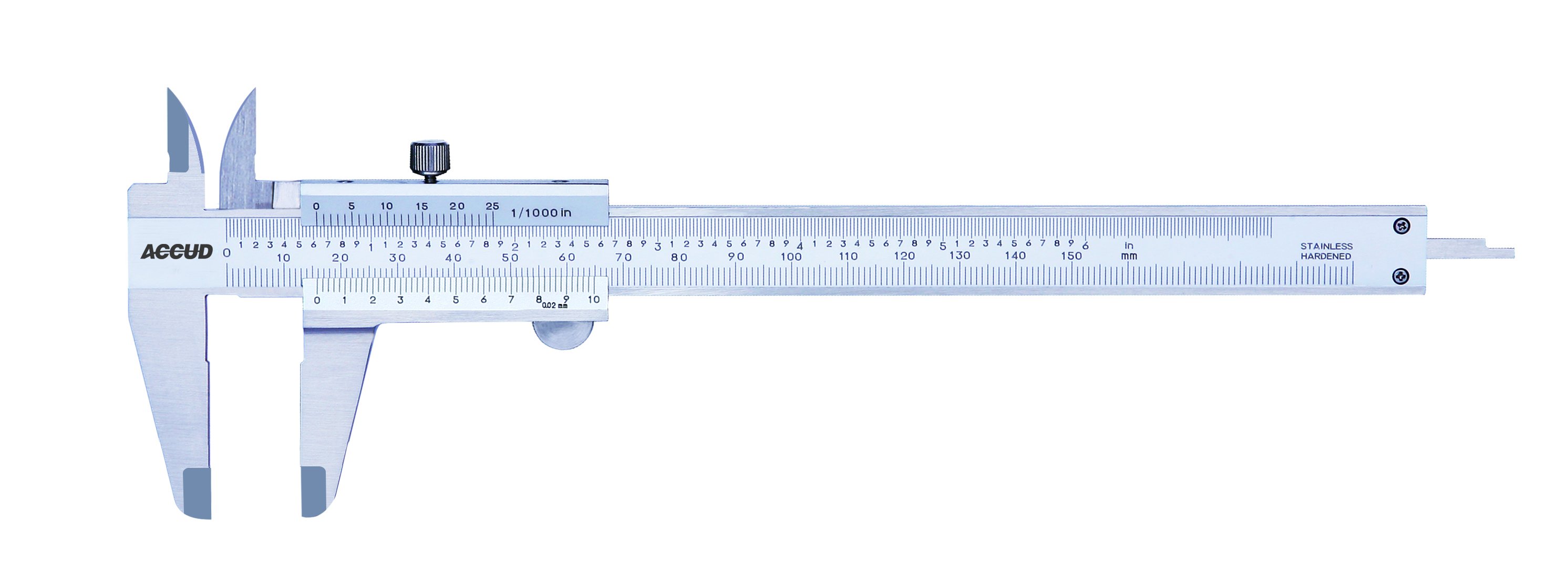

ACCUD 120-012-12S VERNIER CALIPER 300mm/12" "R" LOWER JAWS ( 0.02mm/0.001" )
Analog caliper 0-300 mm/0-12″ with a scale of 0.02mm/0.001". The caliper is equipped with a… Read more
In stock 0 PCS
At the manufacturer 0 PCS
Order number: 120-012-12S
Product description
Analog caliper 0-300 mm/0-12″ with a scale of 0.02mm/0.001".
The caliper is equipped with a scale for reading in metric and inches.
Thanks to the integrated wheel on the bottom of the slider, it is easy to operate. The gauge slider has a locking screw for secure fixation in the set position.
The caliper is also equipped with a depth gauge as standard. Compared to type 120, this type of caliper is characterized by rounded edges on the lower measuring arms.
Thanks to the integrated wheel on the bottom of the slider, it is easy to operate. The gauge slider has a locking screw for secure fixation in the set position.
The caliper is also equipped with a depth gauge as standard. Compared to type 120, this type of caliper is characterized by rounded edges on the lower measuring arms.
Technical specification:
- Measuring range: 0-300 mm (0-12")
- Resolution: 0.02mm/0.001"
- Accuraccy : +/- 0,03mm
- Meet DIN862
- Satin chrome plated reading surface
- Made of stainless steel
Dimensions:

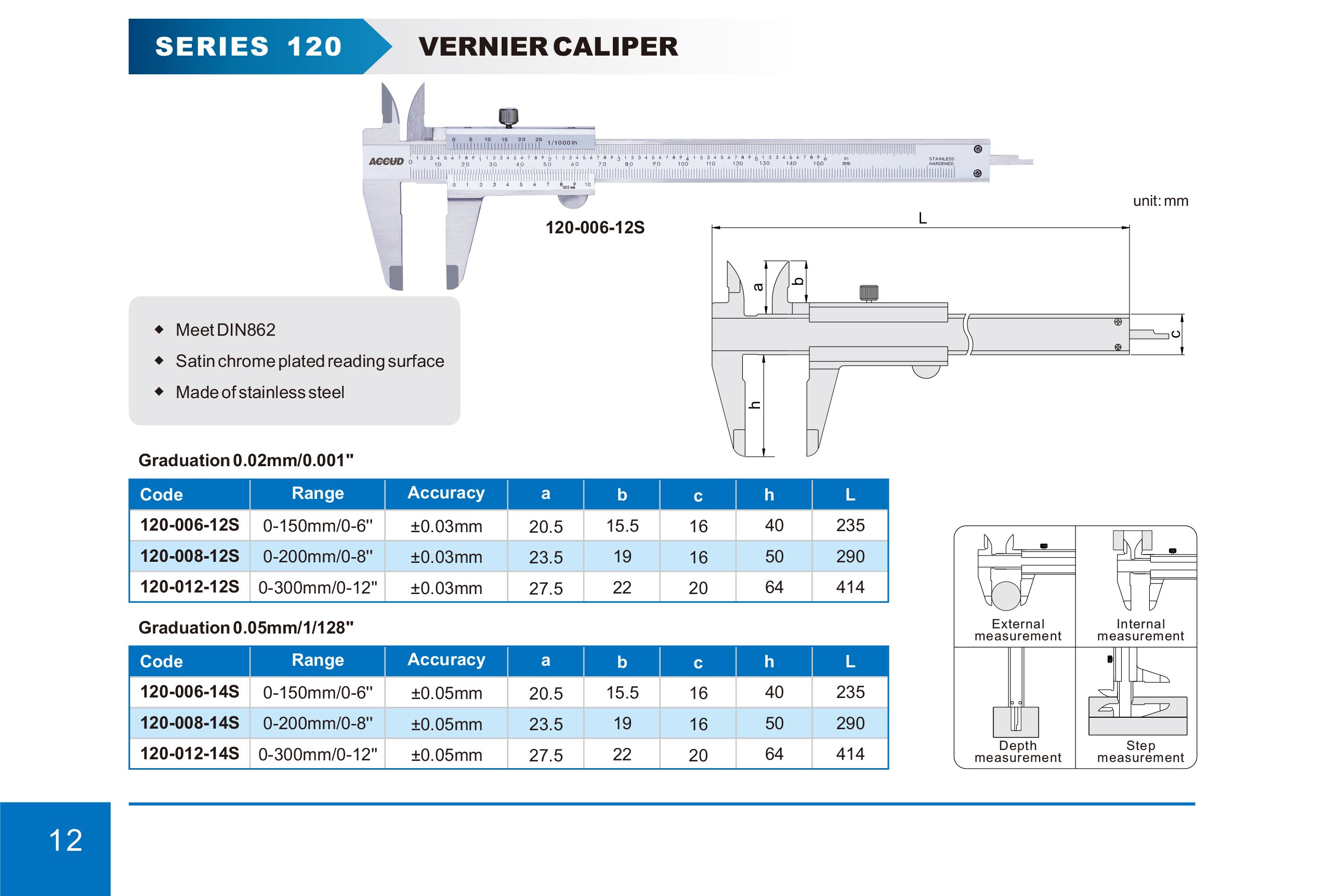

Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
