ACCUD 126-020-12 VERNIER CALIPER 500mm/20" ( jaw length 200mm ) NO UPPER JAWS ( 0.02mm/0.001" )
Analog caliper 0-500 mm/0-20″ with 0.02mm/0.001" graduation without upper measuring arms.With… Read more
In stock 1 PCS
At the manufacturer 8 PCS
Order number: 126-020-12
Product description
Analog caliper 0-500 mm/0-20″ with 0.02mm/0.001" graduation without upper measuring arms.
With fine adjustment.
With fine adjustment.
Technical specification:
- Measuring range: 0-500 mm/0-12″
- Resolution : 0.02mm/0.001"
- Accuraccy : +/- 0,06mm
- Measuring arm length: 200mm
- Satin chrome plated reading surface
- Made of stainless steel

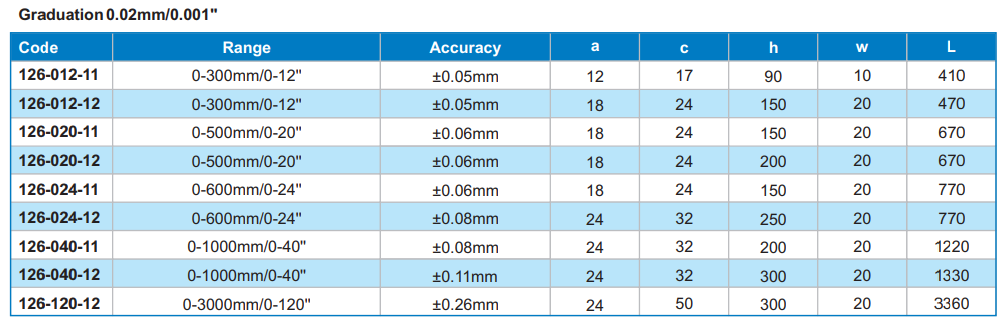

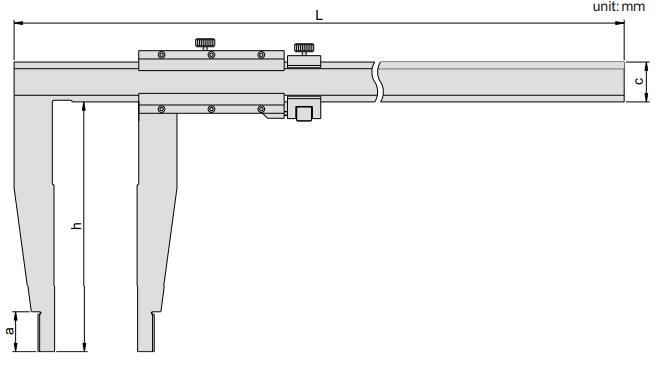

Dimensions:

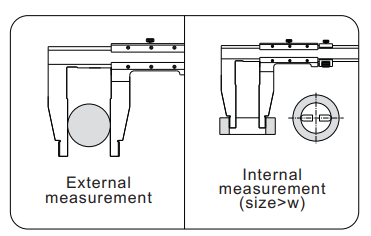

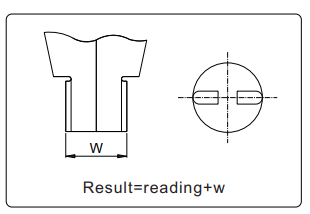

Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
