ACCUD 140-012-13 VERNIER CALIPER 300mm WITH CARBIDE TIPPED JAWS ( 0.05mm )
Analog caliper with external and internal carbide measuring tips with high wear resistance.The… Read more
In stock 0 PCS
At the manufacturer 0 PCS
Order number: 140-012-13
Product description
Analog caliper with external and internal carbide measuring tips with high wear resistance.
The caliper is equipped with a scale for reading in mm units.
The integrated wheel on the bottom of the slider makes it easy to operate. The slider of the gauge has a locking screw for secure fixation in the set position.
The caliper is also equipped with a depth gauge as standard.
The caliper is equipped with a scale for reading in mm units.
The integrated wheel on the bottom of the slider makes it easy to operate. The slider of the gauge has a locking screw for secure fixation in the set position.
The caliper is also equipped with a depth gauge as standard.
Technical specification:
- Measuring range: 0-300 mm
- Resolution: 0,05mm
- Accuracy: +/- 0,03mm
- Meet DIN862
- Satin chrome reading surface
- Made of stainless steel

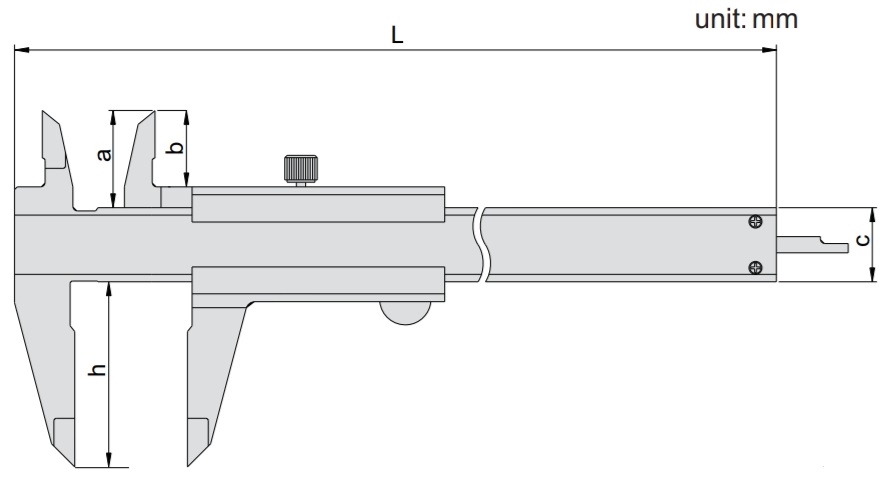

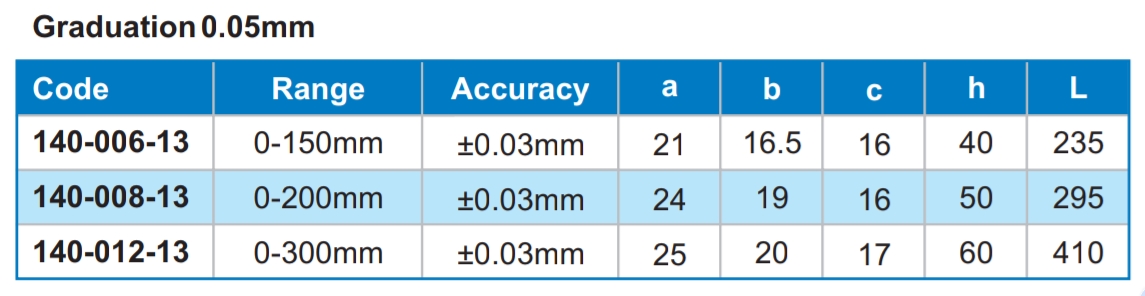

Dimensions:

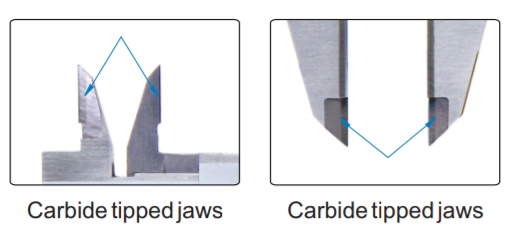

Carbide tipped jaws:

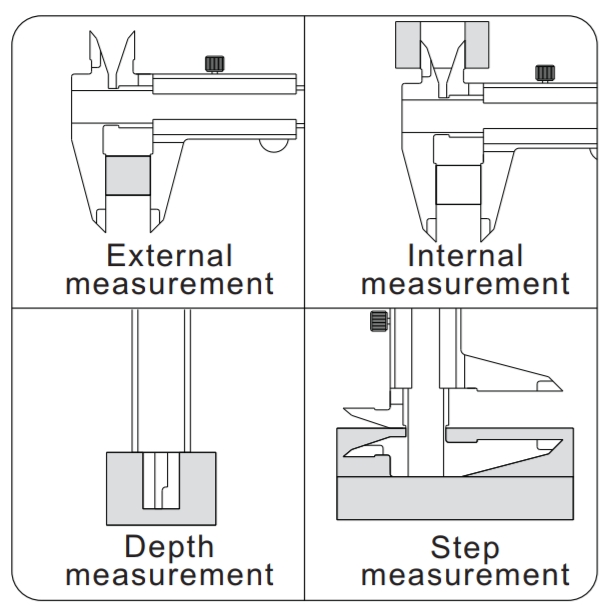

Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.This item is option of INSIZE type : 1238-300
