ACCUD 182-040-11 DIGITAL HEIGHT GAUGE 1000mm/40" TWIN LINE ( 0.01mm/0.001" )
Digital height gauge with two columns with high rigidity and measurement accuracy with scroll wheel… Read more
In stock 0 PCS
At the manufacturer 2 PCS
Order number: 182-040-11
Product description
Digital height gauge with two columns with high rigidity and measurement accuracy with scroll wheel control.
The height gauge has a carbide measuring contact, which can also be used for scribing, a holder for a dial indicator can be purchased with the height gauge.
Measurement accuracy 0,05mm, LR44 battery, data output - connection to a PC via USB cable.
The height gauge has a carbide measuring contact, which can also be used for scribing, a holder for a dial indicator can be purchased with the height gauge.
Measurement accuracy 0,05mm, LR44 battery, data output - connection to a PC via USB cable.

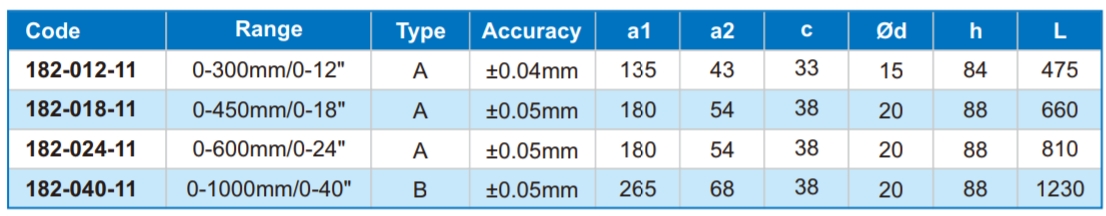

Technical specification:
- Measuring range: 0-1000mm/0-40"
- Resolution: 0.01mm/0.001"
- Accuracy: +/- 0,05mm
- Buttons: on/off, inch/mm, ABS/INC , data preset, set data
- Carbide tipped scriber
- Made of stainless steel beam
- With driving wheel
- Optional accessory: 267 series clamps

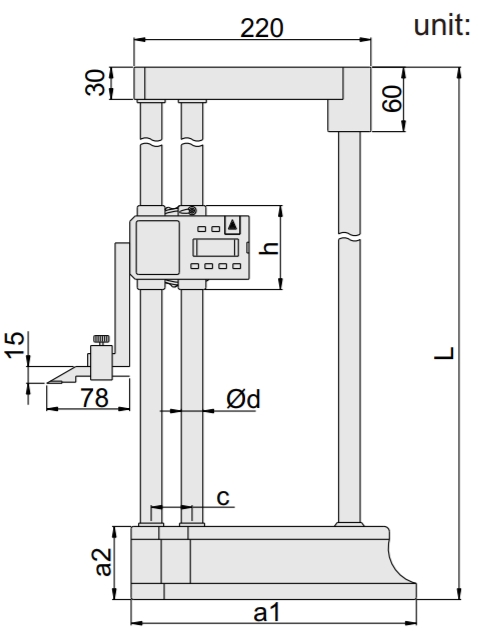

Dimensions:
Carbide tipped jaws:
Driving wheel :

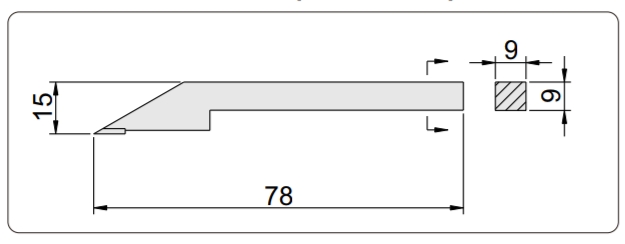

Scriber (included):

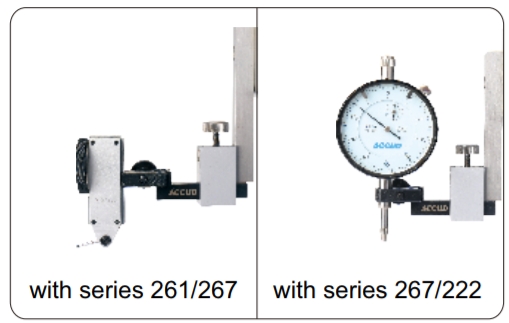

Application with clamps(optional):
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
This item is option of INSIZE type : 1151-1000
