ACCUD 183-006-12 MINI DIGITAL HEIGHT GAUGE 150mm/6" ( 0.01mm/0.0005" )
Digital height gauge in MINI design for measuring small components and parts. The height gauge has… Read more
In stock 0 PCS
At the manufacturer 0 PCS
Order number: 183-006-12
Product description
Digital height gauge in MINI design for measuring small components and parts. The height gauge has a measuring contact made of carbide, which can also be used for scribing.
Measurement accuracy 0,03mm, CR2032 battery, data output - possibility of connection to a PC via USB cable.
Measurement accuracy 0,03mm, CR2032 battery, data output - possibility of connection to a PC via USB cable.
Technical specification:
- Measuring range: 0-150mm/0-6"
- Resolution: 0.01mm/0.0005″
- Accuracy: +/- 0,03mm
- Buttons: on/off, inch/mm, zero
- Carbide tipped scriber
- Made of stainless steel (except the base)
- Data output: YES
- Automatic power off

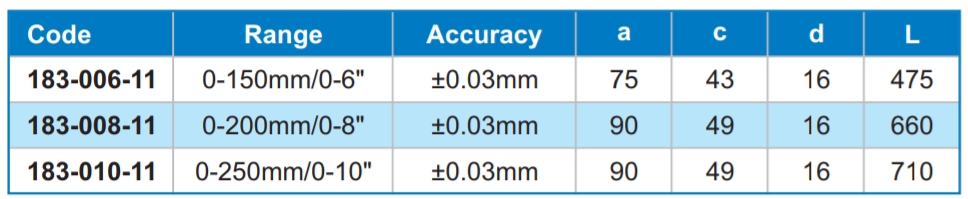

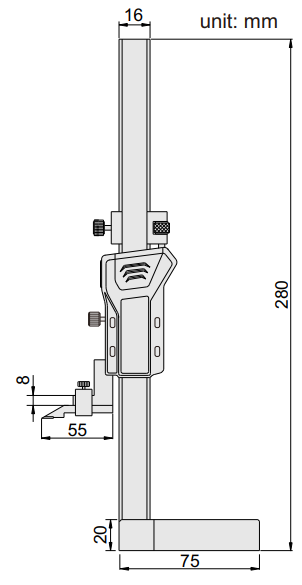

Dimensions:
Carbide tipped jaws:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
This item is option of INSIZE type : 1154-150
