ACCUD 185-018-11 DIAL HEIGHT GAUGE 450mm TWIN LINE ( 0.01mm )
The ACCUD type 185 altimeter is a highly accurate and high-quality altimeter made of stainless… Read more
In stock 0 PCS
Order number: 185-018-11
Product description
The ACCUD type 185 altimeter is a highly accurate and high-quality altimeter made of stainless steel with a cast iron base. The altimeter offers easy reading of measured values in the range of 0-450 mm with a scale division of 0.01 mm with an accuracy of ±0.05 mm. Thanks to the control wheel, you can smoothly and accurately approach the measured edge or line.
Basic specifications:
- Stainless steel altimeter with cast iron base
- Striking tip equipped with carbide blade
- Two counters (plus and minus movement)

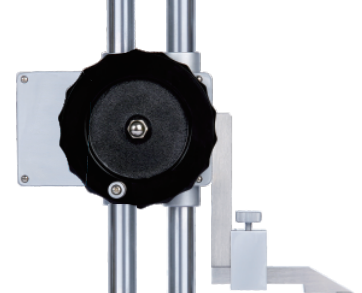

- Control wheel for continuous adjustment

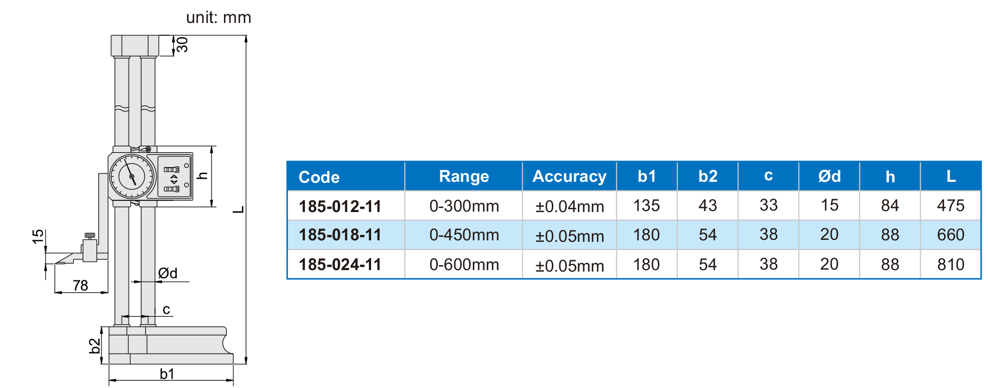

Technical specification:
Measuring range: 0-450 mm
Graduation: 0,01 mm
Accuracy: ±0,05 mm
Dimensions:

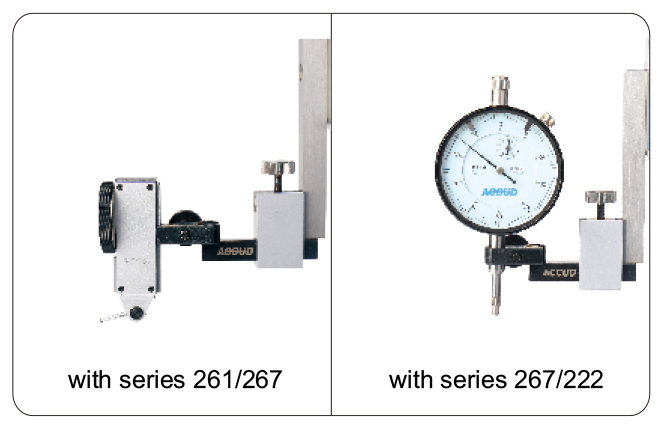

Optional accessories: can be combined with dial indicators, see related products
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.This item is option of INSIZE type : 1351-300
