ACCUD 186-024-11 VERNIER HEIGHT GAUGE 600mm/24" ( 0.02mm/0.001“ )
Analog altimeter for basic measuring and staking.The altimeter has a replaceable carbide tip and a… Read more
In stock 1 PCS
At the manufacturer 13 PCS
Order number: 186-024-11
Product description
Analog altimeter for basic measuring and staking.
The altimeter has a replaceable carbide tip and a holder for a dial indicator can also be purchased. The altimeter has a satin finish option and is equipped with a magnifying glass for better viewing.
The altimeter has a replaceable carbide tip and a holder for a dial indicator can also be purchased. The altimeter has a satin finish option and is equipped with a magnifying glass for better viewing.
Technical specification:
- Measuring range: 0-600mm/0-24"
- Graduation: 0.02mm/0.001″
- Accuracy: +/- 0,05mm
- Move main scale to set zero
- Carbide tipped scriber
- Made of stainless steel (except the base)
- Satin chrome plated scale
- With magnifier
- Optional accessory: 267 series clamps

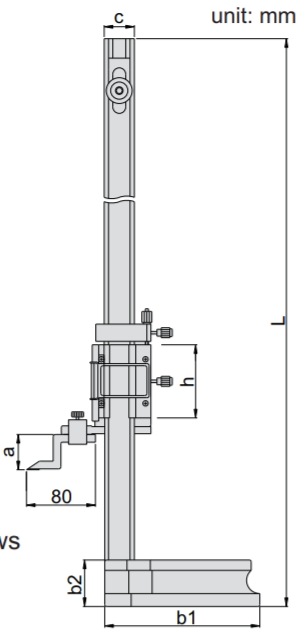

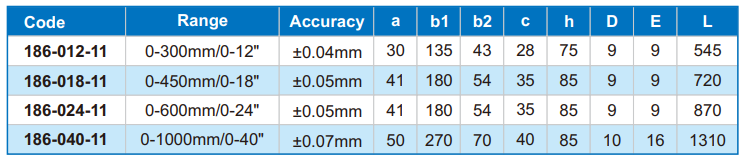

Dimensions:
Carbide tipped jaws:

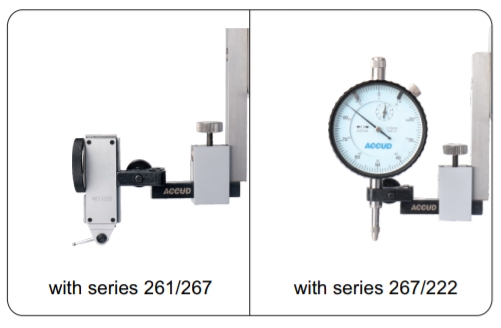

Application with clamps(optional):
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.This item is option of INSIZE type : 1250-600
