ACCUD 187-008-12 187-12 MINI VERNIER HEIGHT GAUGE 200mm/8" ( 0.02mm/0.001" )
Sliding analog altimeter in MINI design for basic measurements and staking with replaceable carbide… Read more
In stock 0 PCS
At the manufacturer 2 PCS
Order number: 187-008-12
Product description
Sliding analog altimeter in MINI design for basic measurements and staking with replaceable carbide tip. The altimeter has a satin-finished scale for better readability.
Technical specification:
- Measuring range: 0-200mm/0-8"
- Graduation: 0,02 mm/0,001
- Accuracy: +/- 0,03mm
- Carbide tipped scriber
- Made of stainless steel (except the base)
- Satin chrome plated scale

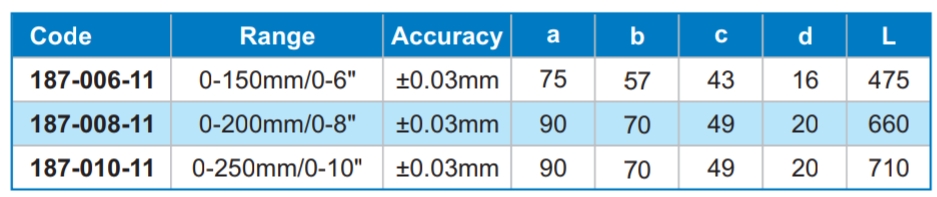

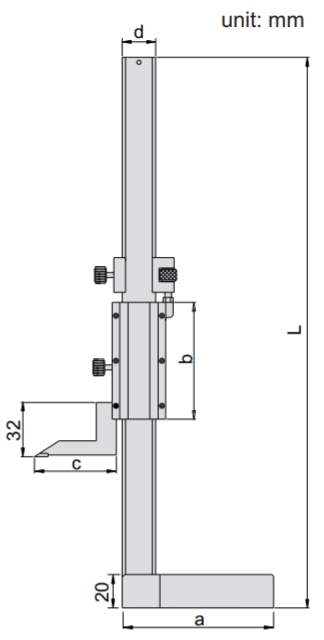

Dimensions:
Carbide tipped jaws:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
This item is option of INSIZE type : 1253-200
