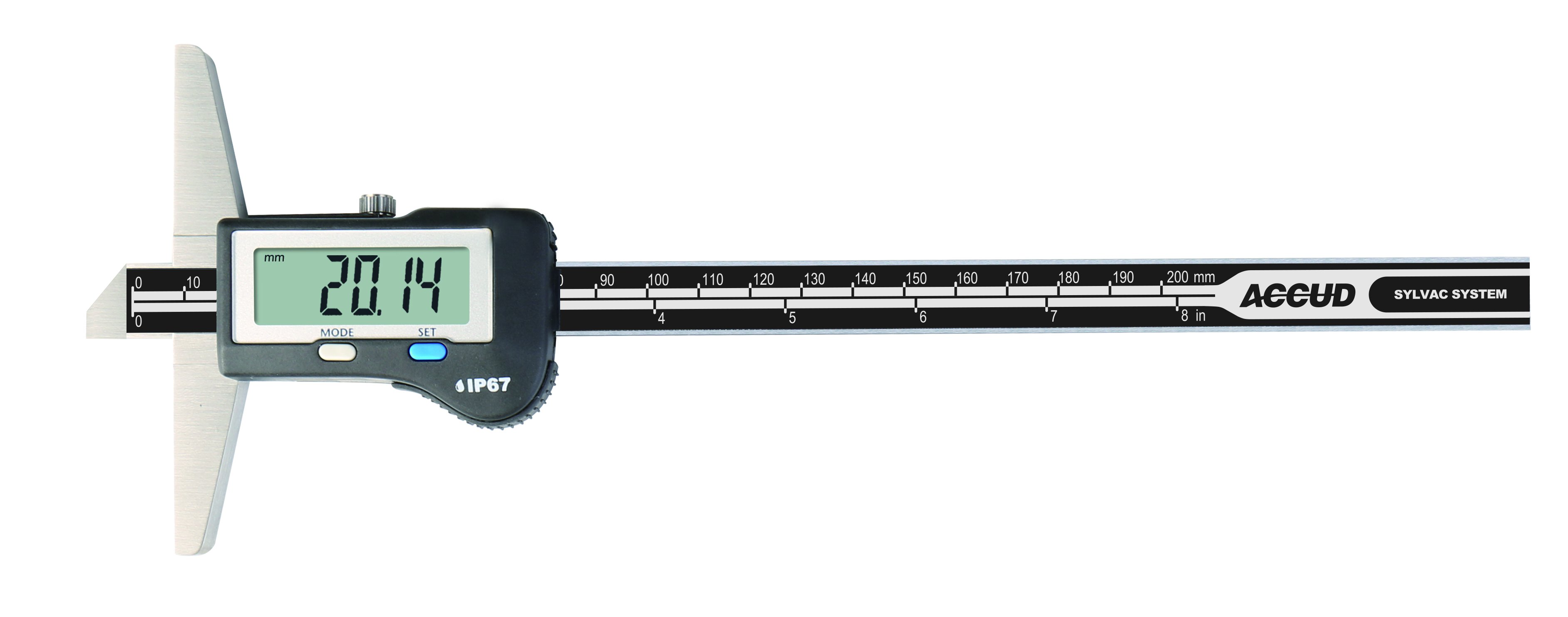

ACCUD 197-008-11 IP67 DIGITAL DEPTH CALIPER 200mm/8" SYLVAC SYSTEM ( 0.01mm/0.0005" )
Waterproof sliding digital depth gauge with IP 67 protection. Ideal for measuring components… Read more
In stock 1 PCS
At the manufacturer 15 PCS
Order number: 197-008-11
Product description
Waterproof sliding digital depth gauge with IP 67 protection. Ideal for measuring components directly in the machine tool, where there is a possibility of contact of the gauge with cooling liquid or in a humid environment.
Measuring accuracy 0,02mm, automatic shutdown in case of prolonged inactivity, CR2032 battery, data output - possibility to connect to PC via USB cable.
Measuring accuracy 0,02mm, automatic shutdown in case of prolonged inactivity, CR2032 battery, data output - possibility to connect to PC via USB cable.
Technical specification:
- Measuring range 0-200mm/0-8''
- Resolution: 0.01mm/0.0005″
- Accuracy: +/- 0,02mm
- Buttons: on/off, zero, mm/in
- Automatic power on/off
- IP67 protection level
- ABS
- Made of stainless steel
Dimensions:
Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.This item is option of INSIZE type : 1541-200
