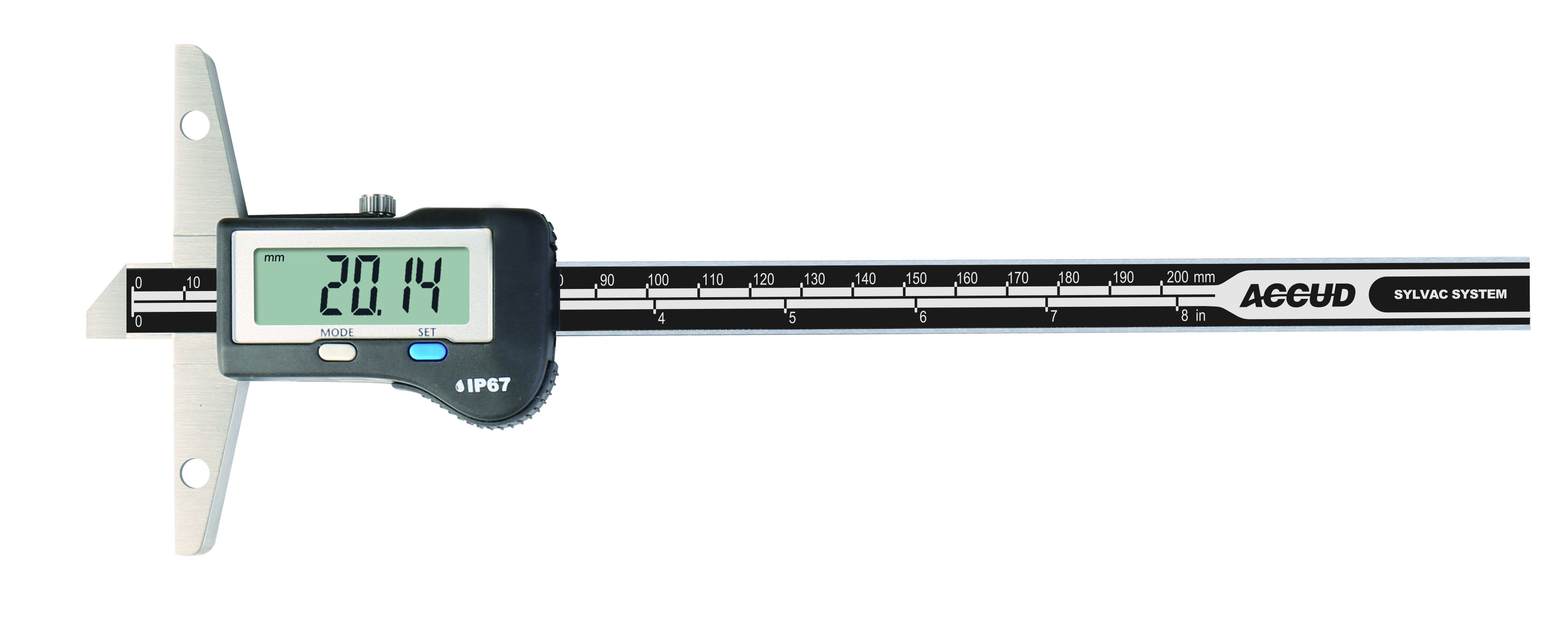

ACCUD 197-012-21 IP67 DIGITAL DEPTH CALIPER 300mm/12" SYLVAC SYSTEM, WITH HOLES ( 0.01mm/0.0005" )
Waterproof sliding digital depth gauge with IP 67 protection. Ideal for measuring components… Read more
In stock 0 PCS
At the manufacturer 4 PCS
Order number: 197-012-21
Product description
Waterproof sliding digital depth gauge with IP 67 protection. Ideal for measuring components directly in the machine tool, where there is a possibility of contact of the gauge with cooling liquid or in a humid environment.
Measuring accuracy 0,03mm, automatic shutdown in case of prolonged inactivity, CR2032 battery, data output - possibility to connect to PC via USB cable.
Measuring accuracy 0,03mm, automatic shutdown in case of prolonged inactivity, CR2032 battery, data output - possibility to connect to PC via USB cable.
Technical specification:
- Measuring range: 0-300mm/0-12''
- Resolution: 0.01mm/0.0005″
- Accuracy: +/- 0,03mm
- Buttons: on/off, zero, mm/in
- Automatic power on/off
- IP67 protection level
- ABS
- Optional accessory: series 170 extension base

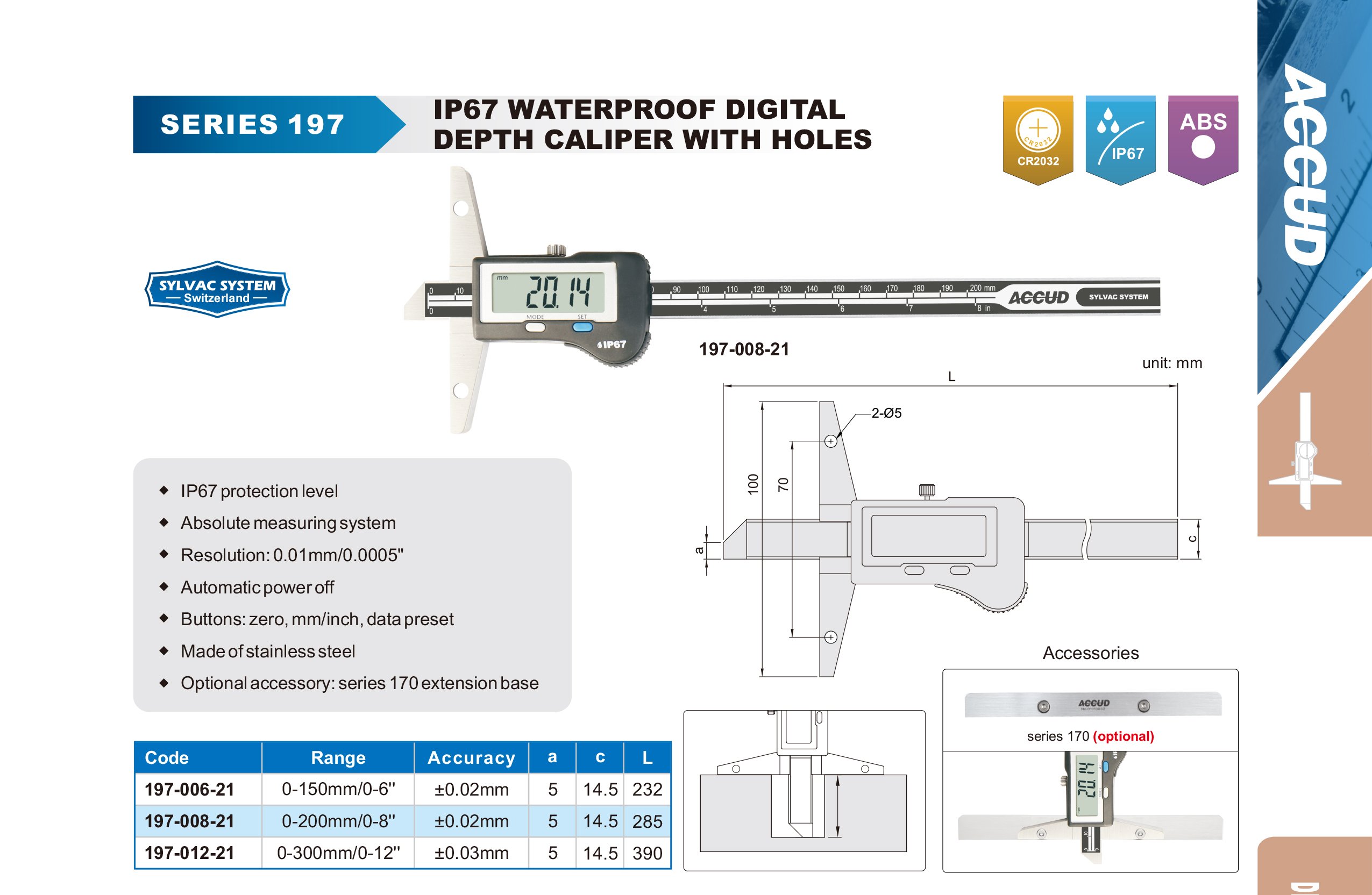

Dimensions:
Accessories:
Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
