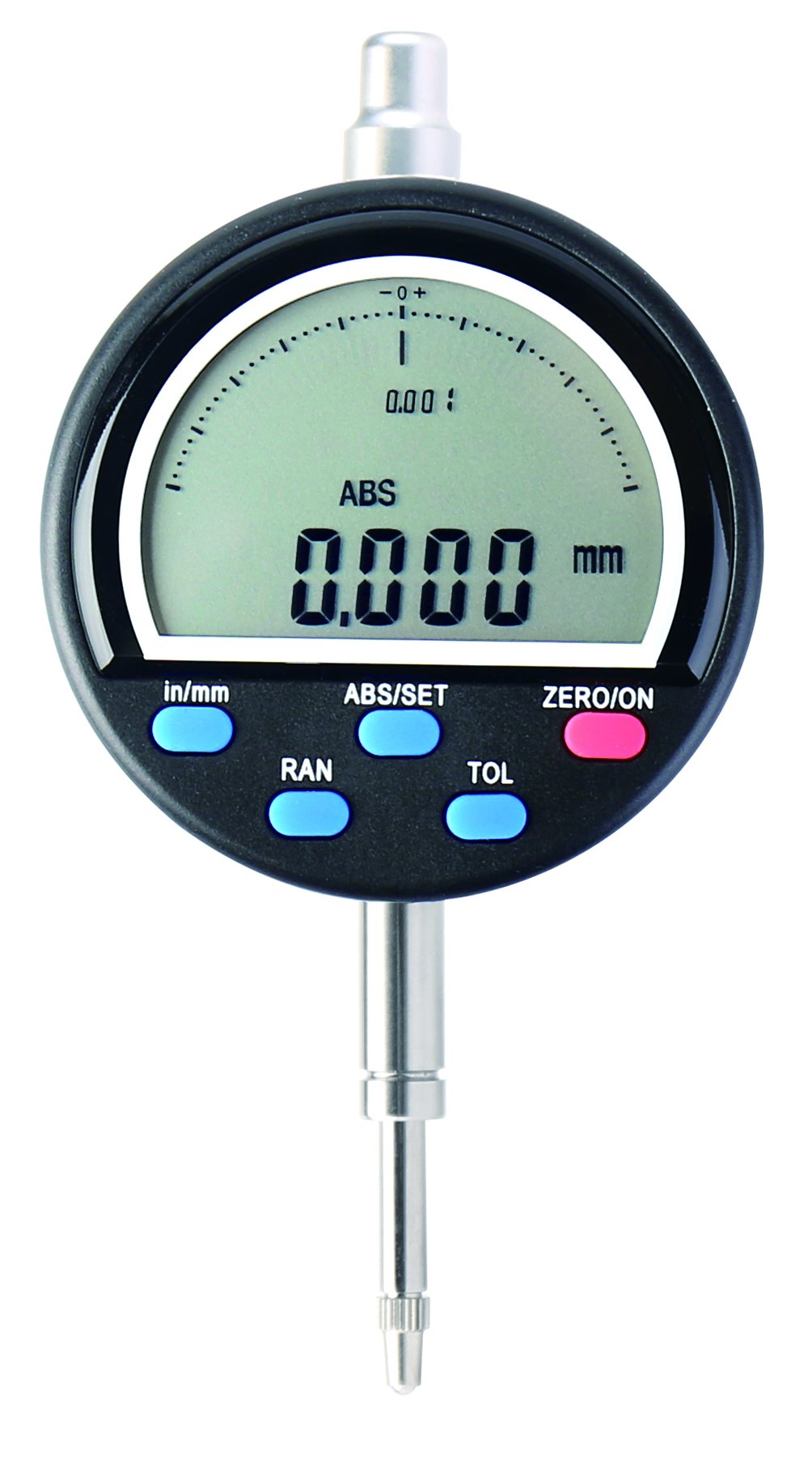

ACCUD 216-025-11 DIGITAL INDICATOR, with spare flat back / 25.4mm/1" / 0.002mm/0.0005"
Digital indicator with reading in digital and analog. Display can be rotated by 320°. Keep… Read more
In stock 0 PCS
At the manufacturer 0 PCS
Order number: 216-025-11
Product description
Digital indicator with reading in digital and analog. Display can be rotated by 320°. Keep preset data and tolerance data in memory after restart.

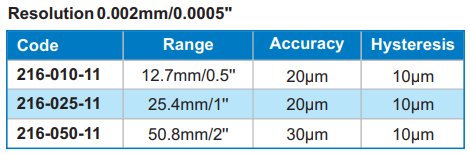

Technical specification:
- Range: 25.4mm/1"
- Resolution: 0.002mm/0.0005"
- Accuracy: 20μm
- Hysteresis: 10µm
- Button: on/off, zero, tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR, absolute/incremental measurement,mm/inch,data output
- Automatic power off
- Data output: YES
- Supplied with lug and flat back

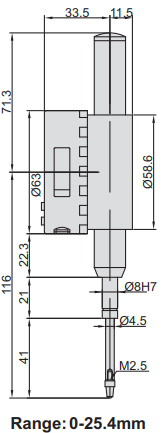

Dimensions:
Contact points (optional):

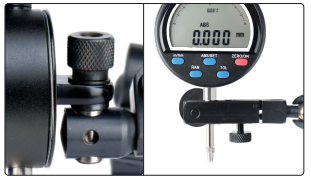

Application:

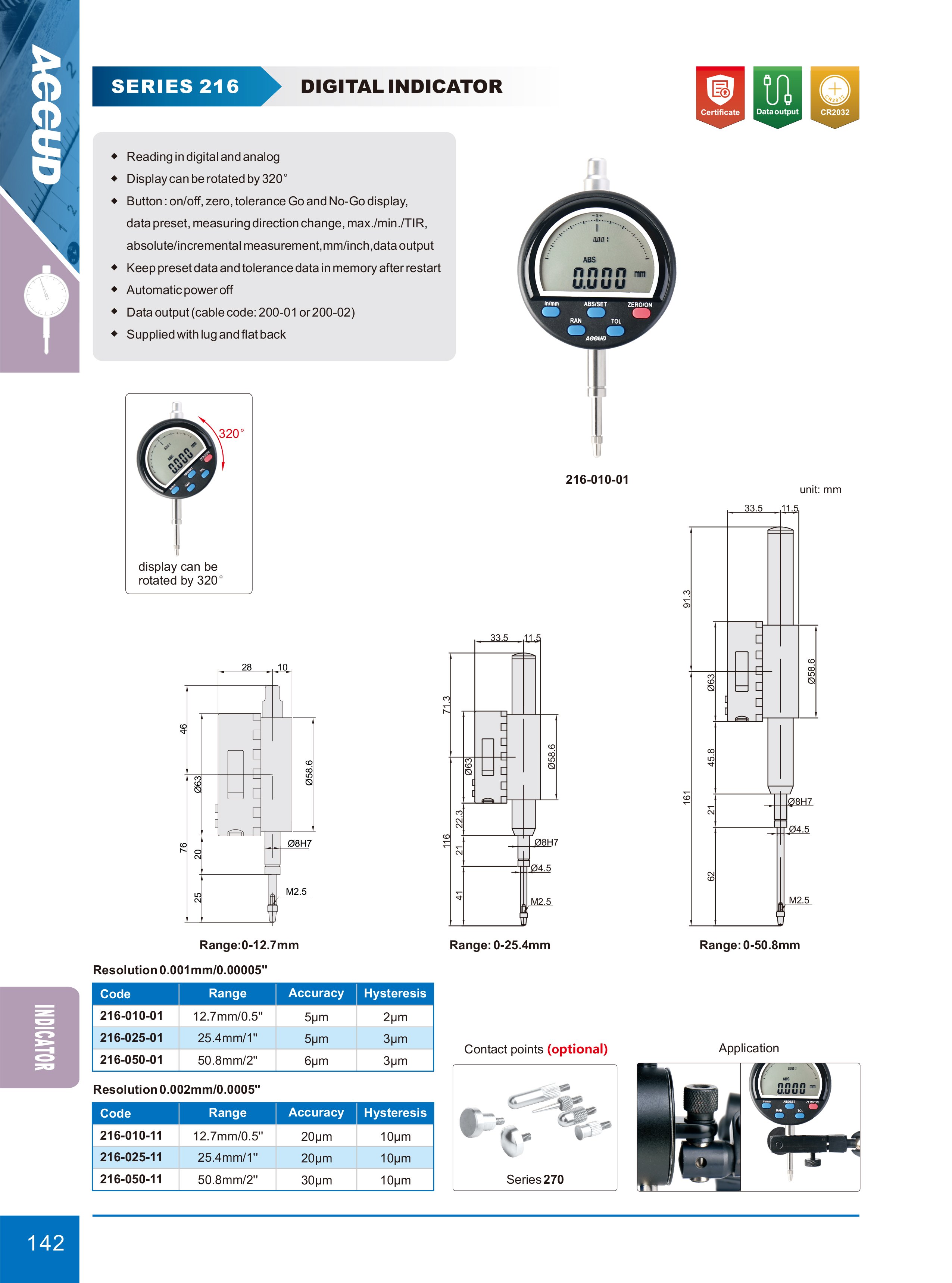

For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.T
This item is option of INSIZE type : 2138-25
