ACCUD 223-010-12 DIAL INDICATOR 0-10mm ( 0,01mm ) FLAT BACK
Dial indicator with the flat back. Technical specification: Range: 0-10mm Graduation: 0,01mm… Read more
In stock 0 PCS
At the manufacturer 195 PCS
Order number: 223-010-12
Product description
Dial indicator with the flat back.

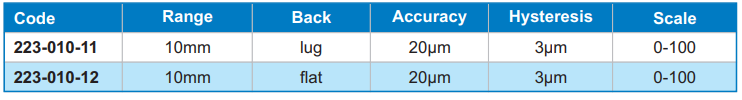

Technical specification:
- Range: 0-10mm
- Graduation: 0,01mm
- Accuracy: 20μm
- Hystersesis: 3µm
- With limit hands
- Range per revolution: 1mm
- With lock screw

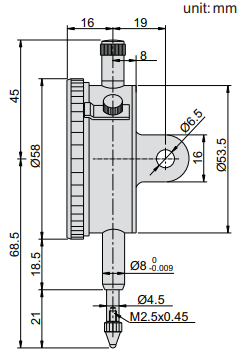

Dimensions:
Contact points (optional):
Application:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.This item is option of INSIZE type : 2301-10F
