ACCUD 228-005-62P COMPACT DIAL INDICATOR, 5mm ( flat back )
Compact dial indicator with limit hands, jeweled bearing, and locking screw. Technical… Read more
In stock 0 PCS
Order number: 228-005-62P
Product description
Compact dial indicator with limit hands, jeweled bearing, and locking screw.

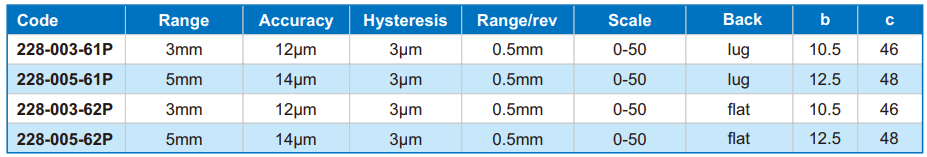

Technical specification:
- Range: 5mm
- Accuracy: 14µm
- Hysteresis: 3µm
- Range/rev: 0.5mm
- Scale: 0-50
- Back: flat
- Meet DIN878
- Graduation: 0.01mm
- With limit hands
- Jeweled bearing
- With lock screw

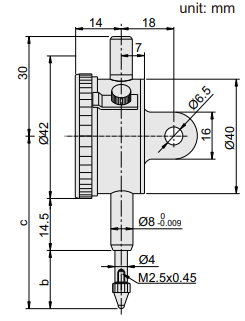

Dimension:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
