ACCUD 261-002-01 DIAL TEST INDICATOR 0-0.2mm ( 0.002mm ) BEZEL 30mm
Dial test indicator with anti-magnetic copper body. Technical specification: Range: 0-0.2mm… Read more
In stock 5 PCS
At the manufacturer 27 PCS
Order number: 261-002-01
Product description
Dial test indicator with anti-magnetic copper body.
Technical specification:
- Range: 0-0.2mm
- Graduation: 0.002mm
- Accuracy: 6µm
- Bezel: Ø30mm
- Hysteresis: 2µm
- Jeweled bearing
- Double scale spacing
- With two clamps: Ø4mm and Ø8mm

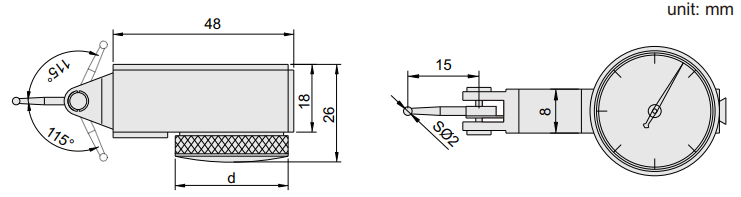

Dimensions:

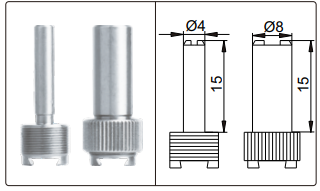

Clamps (included):

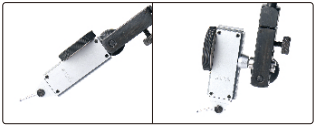

Application:

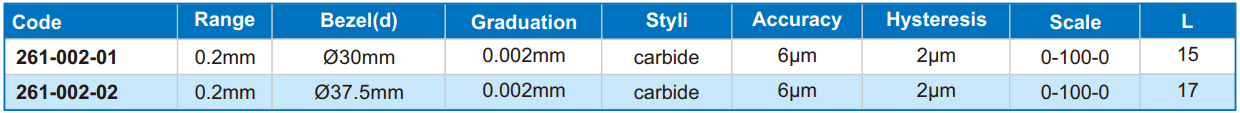

For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.This item is option of INSIZE type : 2380-02
