ACCUD 261-014-01 PRECISION DIAL TEST INDICATOR 0-0.14mm ( 0.001mm )
Precision dial test indicator with anti-magnetic copper body. Technical specification: Range: 0-0… Read more
In stock 0 PCS
At the manufacturer 14 PCS
Order number: 261-014-01
Product description
Precision dial test indicator with anti-magnetic copper body.
Technical specification:
- Range: 0-0.14mm
- Graduation: 0.001mm
- Accuracy: 4µm
- Bezel: Ø40mm
- Hysteresis: 2µm
- Meet DIN2270
- Jeweled bearing
- Double scale spacing
- With two clamps: Ø6mm and Ø8mm
Dimensions:

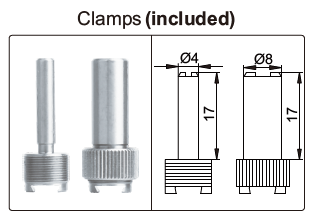

Clamps (included):

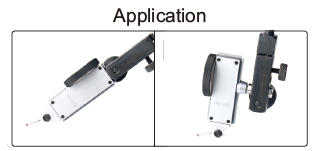

Application:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
