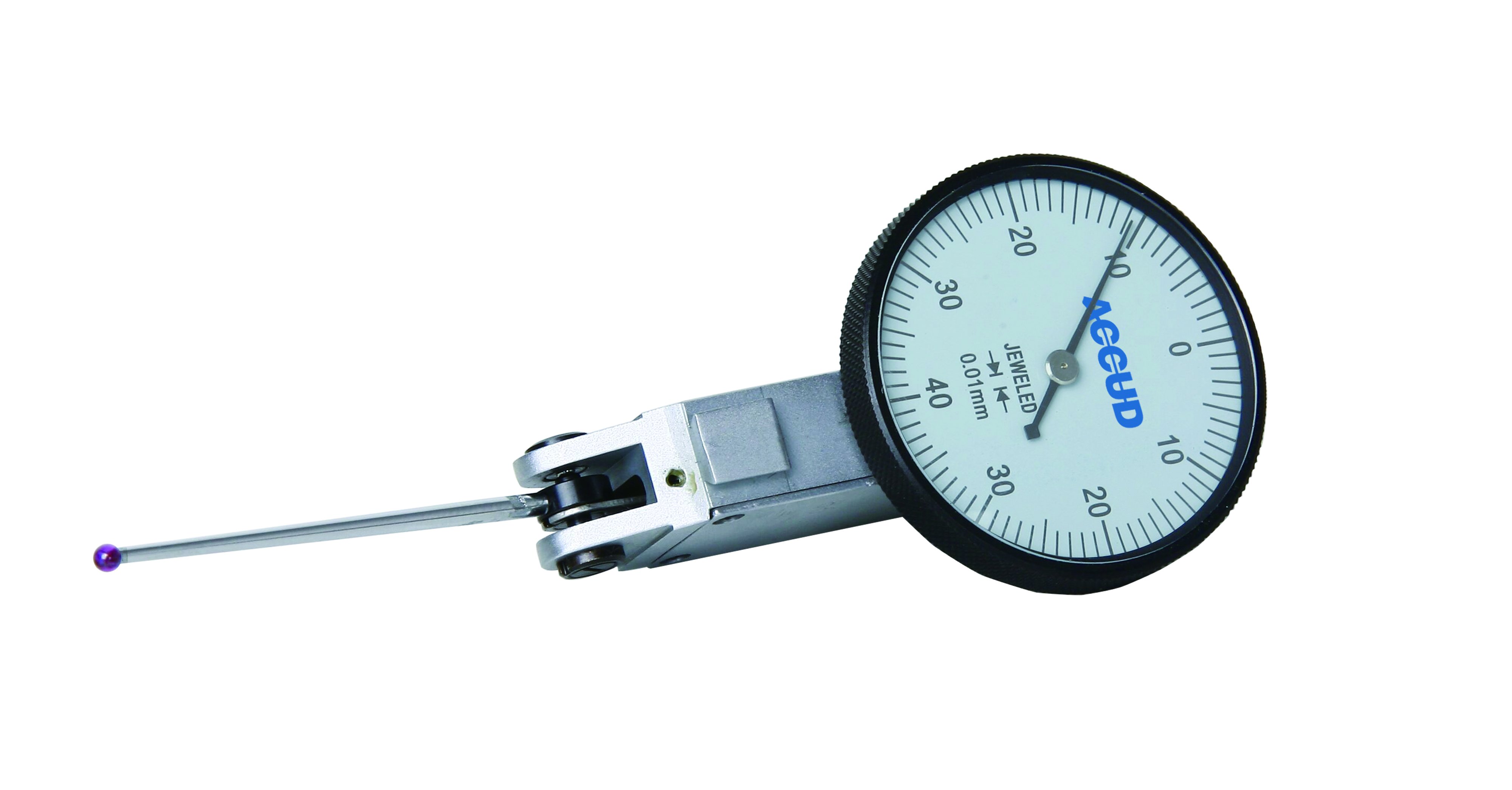

ACCUD 263-008-11 LONG STYLI 30,5mm DIAL TEST INDICATOR 0-0,8mm ( 0.01mm ) BEZEL 37,5mm
Dial test indicator with anti-magnetic copper body. Technical specification: Range: 0-0,8mm… Read more
In stock 2 PCS
At the manufacturer 58 PCS
Order number: 263-008-11
Product description
Dial test indicator with anti-magnetic copper body.

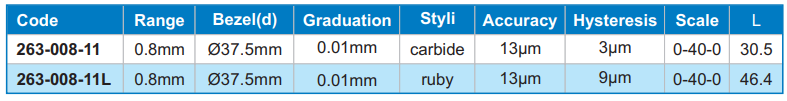

Technical specification:
- Range: 0-0,8mm
- Graduation: 0.01mm
- Accuracy: 13µm
- Hysteresis: 3µm
- Bezel: 37,5mm
- Jeweled bearing
- Double scale spacing
- Anti-magnetic copper body
- With two clamps: Ø4mm and Ø8mm

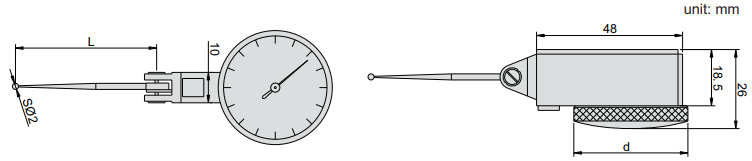

Dimensions:

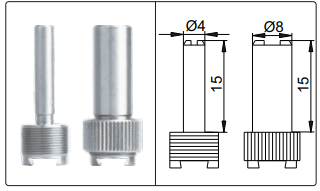

Clamps (included):
Application:

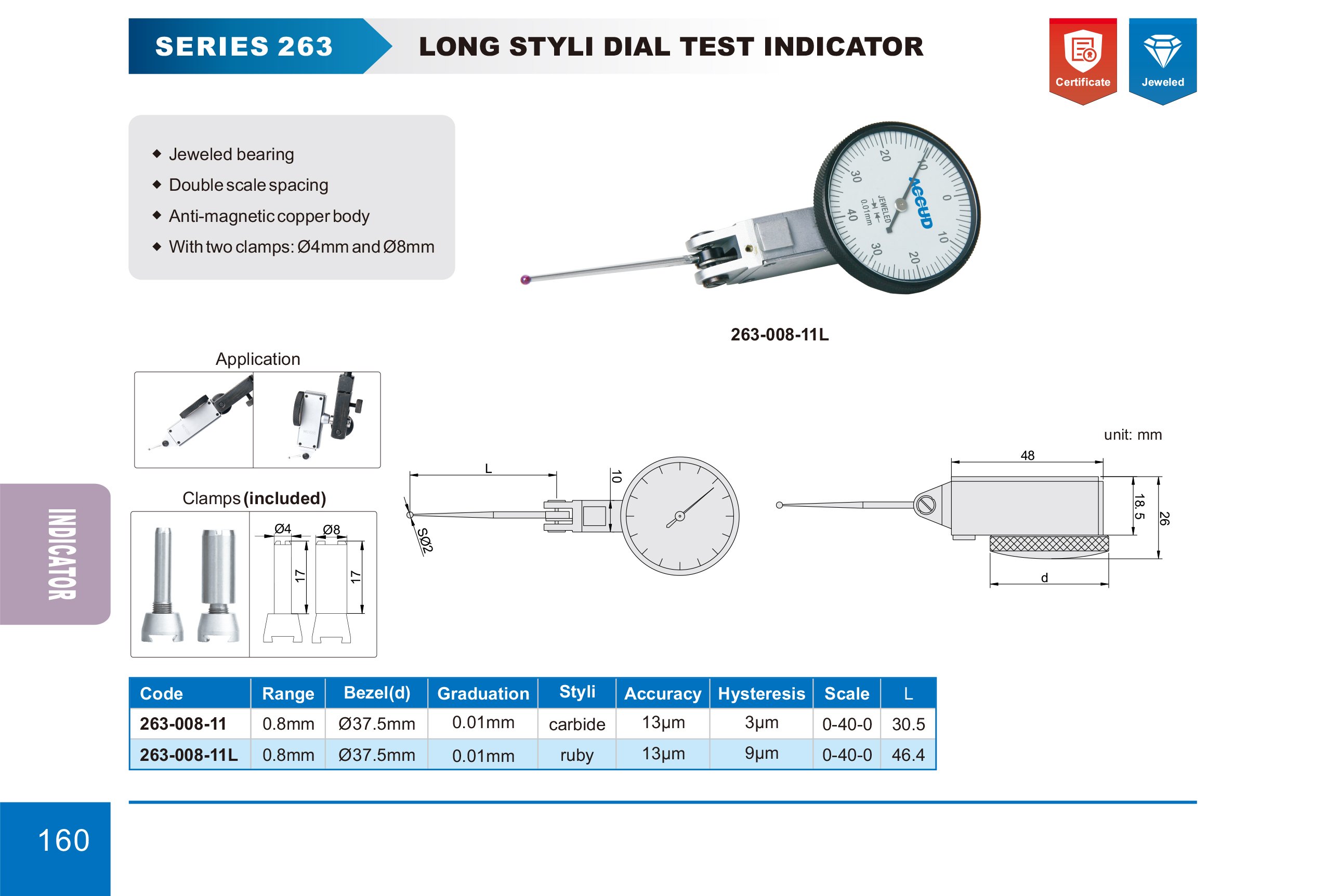

For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
This item is option of INSIZE type : 2383-08A
