ACCUD 304-004-01 DIGITAL GEAR TOOTH MICROMETER, 75-100mm/3-4" without tips IP65 (0.001mm/0.00005")
Special waterproof digital micrometer for measuring gears without contact. Technical specification:… Read more
In stock 0 PCS
Order number: 304-004-01
Product description
Special waterproof digital micrometer for measuring gears without contact.
Technical specification:
- Range: 75-100mm/3-4"
- Accuracy: ±5μm
- Resolution 0.001mm/0.00005″
- IP65 dust/waterproof
- Button function: on/off, set, mm/inch, ABS/INC
- Data output
- Automatic power off
- Ratchet stop
- Optional accessory ball tips (code: series 345-000-XX)

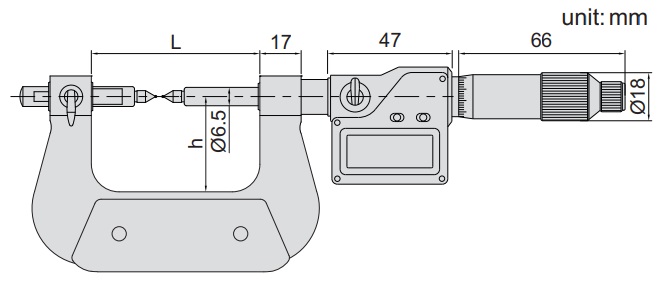

Dimensions:

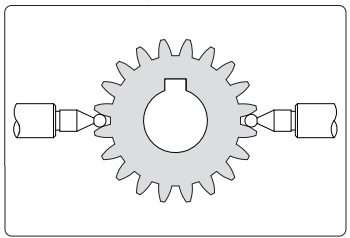

Application:
Setting standards:

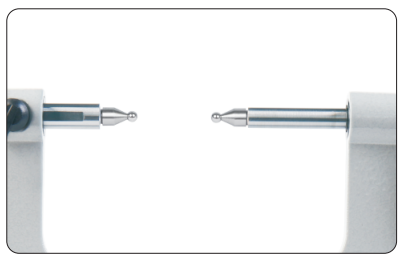

Install points:

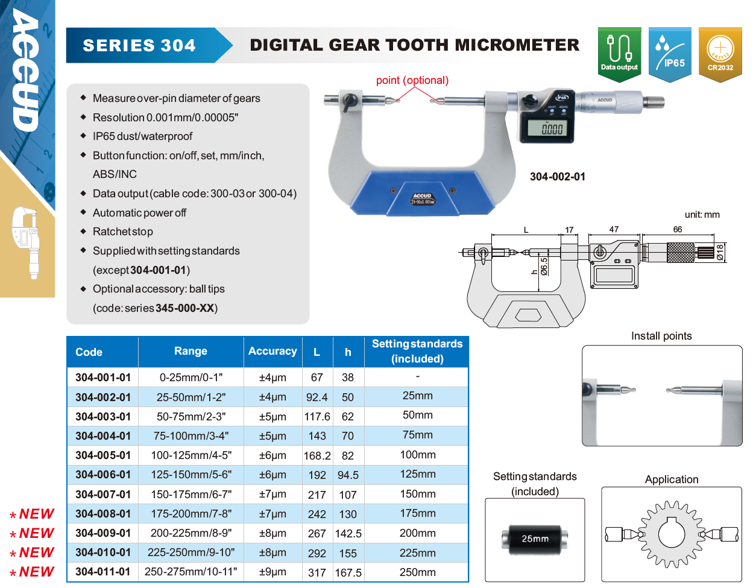

For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.This item is option of INSIZE type : 3591-100A
