ACCUD 312-006-03 DIGITAL MICROMETER 125-150mm (0.001mm/0.00005")
Digital micrometer without data output. Supplied with carbide measuring styli. Basic type for… Read more
In stock 0 PCS
At the manufacturer 3 PCS
Order number: 312-006-03
Product description
Digital micrometer without data output. Supplied with carbide measuring styli. Basic type for everyday use.
Technical specification:
- Range: 125-150mm/5-6"
- Resolution: 0.001mm/0.00005"
- Accuracy: +- 3 µm
- Button: ON/OFF/SET, ABS/INC/UNIT
- Carbide measuring faces
- Ratchet stop
- Setting standards are included

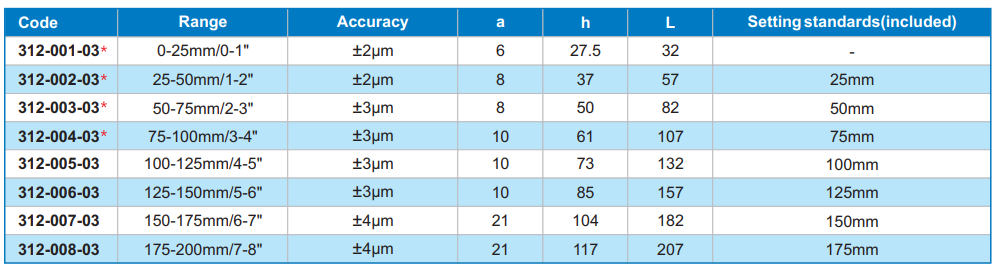

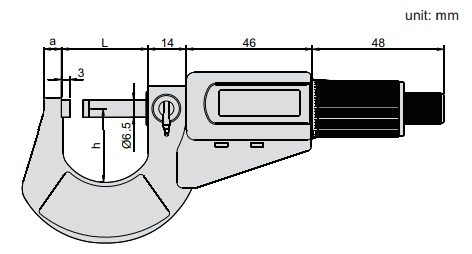

Dimensions:

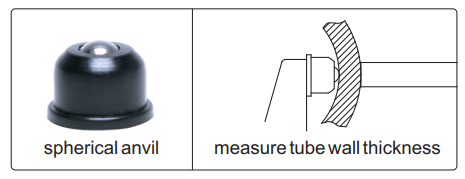

Spherical anvil :
Setting standards:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.This item is option of INSIZE type : 3109-150A
