ACCUD 318-003-02 DIGITAL SPLINE MICROMETER, 50-75mm/2-3", 10xΦ3mm (0.001mm/0.00005")
Special digital waterproof groove micrometer with carbide thin measuring surfaces for measuring… Read more
In stock 0 PCS
At the manufacturer 2 PCS
Order number: 318-003-02
Product description
Special digital waterproof groove micrometer with carbide thin measuring surfaces for measuring shafts, holes and grooves.
Type B - carbide styli
Type B - carbide styli
Technical specification:
- Range: 50-75mm/2-3"
- Accuracy: ±5μm
- Resolution 0.001mm/0.00005"
- IP65 protection level
- Button: on/off, set, mm/inch, ABS/INC, data output
- Automatic power off
- Data output
- Ratchet stop
- Supplied with setting standards
- Carbide measuring faces

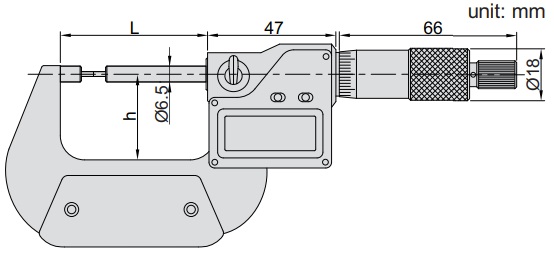

Dimensions:

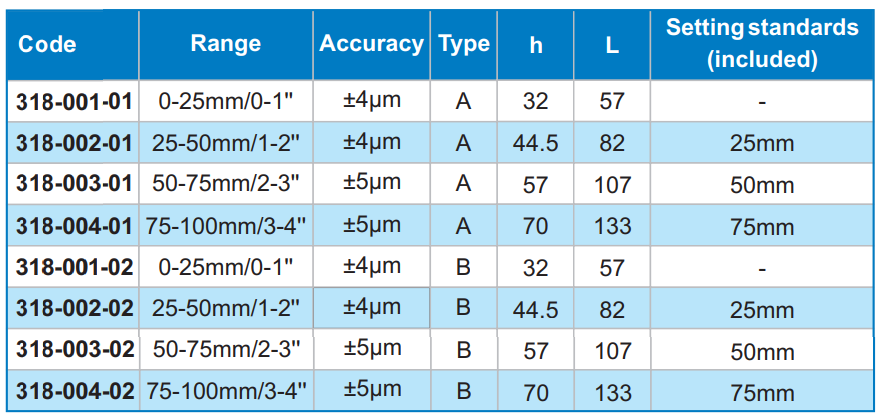

Setting standards:
Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.This item is option of INSIZE type : 3533-75BA
