ACCUD 323-004-01 OUTSIDE MICROMETER 75-100mm (0.01mm)
The analog micrometer with a measuring range of 75-100mm and a graduation of 0.01 mm is equipped… Read more
In stock 0 PCS
At the manufacturer 6 PCS
Order number: 323-004-01
Product description
The analog micrometer with a measuring range of 75-100mm and a graduation of 0.01 mm is equipped with carbide measuring faces, ensuring high durability and long service life. The instrument complies with DIN 863-1 and is designed for precise measurements in workshop and industrial environments.

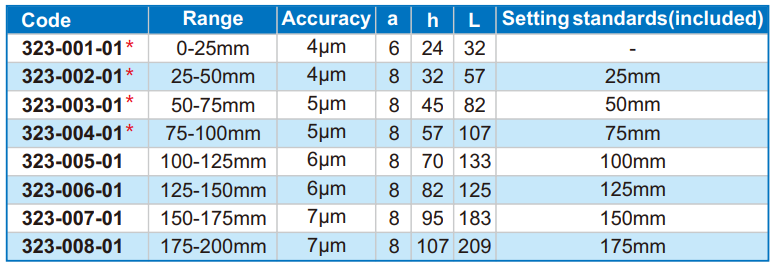

Technical specifications:
- Graduation 0.01mm
- Carbide measuring faces
- Meet DIN863-1
- Range: 75-100mm
- Accuracy: 5μm
- Supplied with setting standards (except 0-25mm)

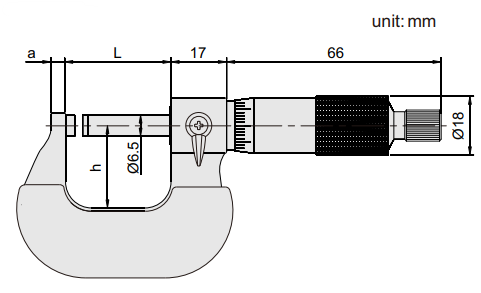

Dimensions:
Setting standard:

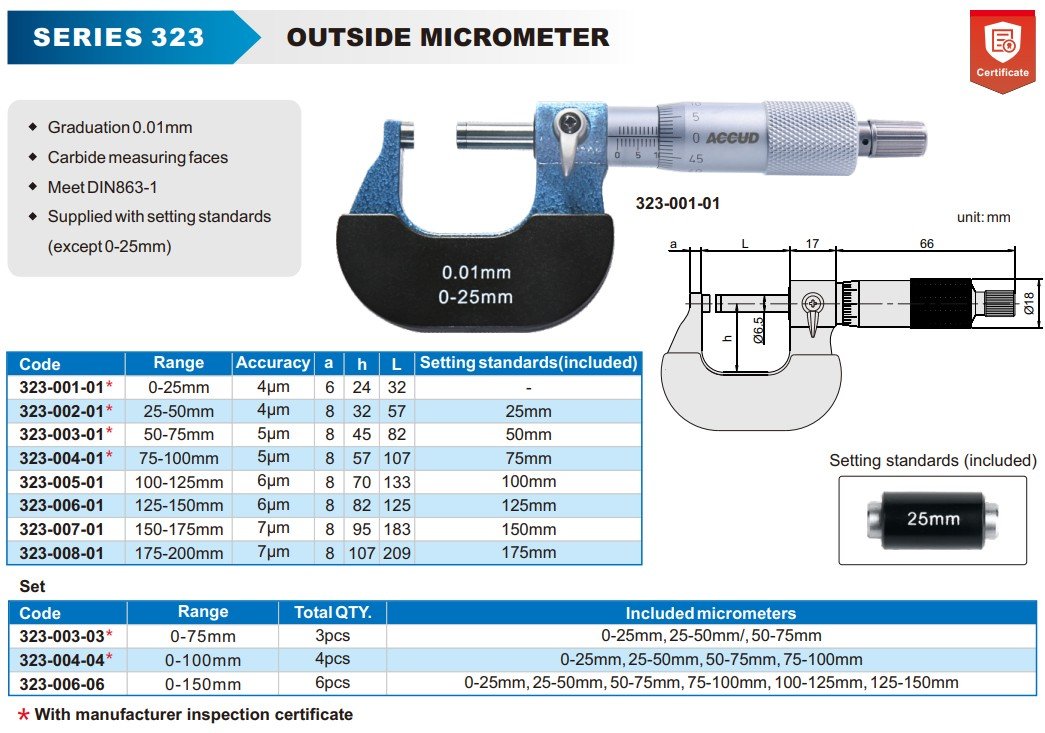

For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
