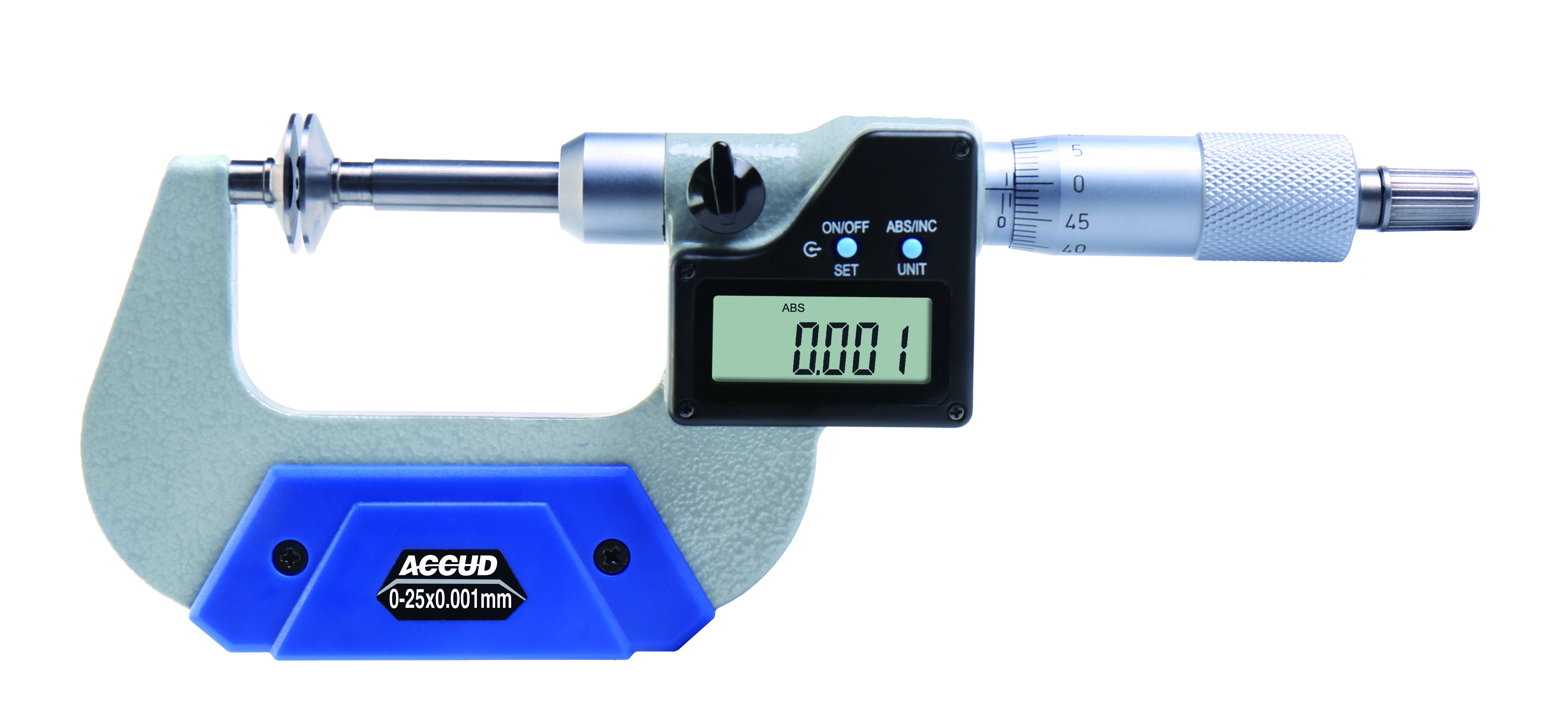

ACCUD 332-001-01 DIGITAL DISK MICROMETER 0-25mm/0-1" NON ROTATING SPINDLE (0.001mm/0.00005")
Special digital micrometer with disc measuring surfaces, with non-rotating spindle for measuring… Read more
In stock 1 PCS
At the manufacturer 8 PCS
Order number: 332-001-01
Product description
Special digital micrometer with disc measuring surfaces, with non-rotating spindle for measuring gears.
Technical specification:
- Range: 0-25mm/0-1''
- Accuracy: ±4μm
- Resolution 0.001mm/0.00005″
- Non-rotating spindle
- Button: on/off, set, mm/inch, ABS/INC, data output
- Automatic power off
- Data output
- Ratchet stop
- Supplied with setting standards

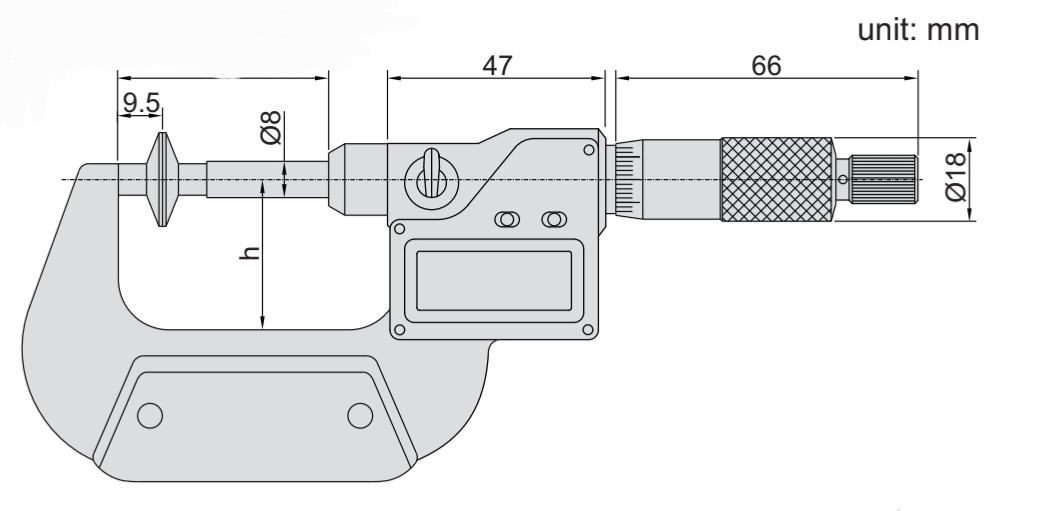

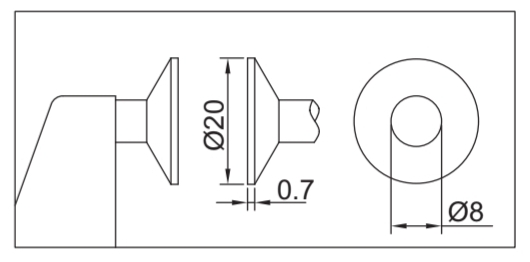

Dimensions:

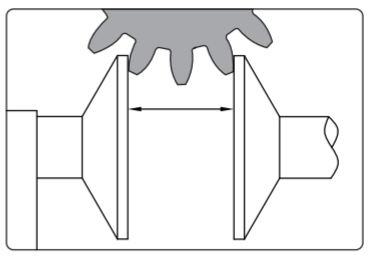

Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.his item is option of INSIZE type : 3594-25A
