ACCUD 334-025-05 MICROMETER 5-25mm V-ANVIL 5 flute 108° (0.01mm)

Special analog micrometer for measuring cutting tools with five cutting edges such as taps, milling… Read more

In stock 0 PCS
At the manufacturer 0 PCS

Order number: 334-025-05

Unable to order, purchase possible after login

Product description

Special analog micrometer for measuring cutting tools with five cutting edges such as taps, milling cutters, reamers, etc.

Technical specification:

  • Range: 5-25mm
  • Accuracy: ±4μm
  • Graduation: 0,01 mm
  • Ratchet stop
  • Carbide measuring faces
  • Supplied with setting standards

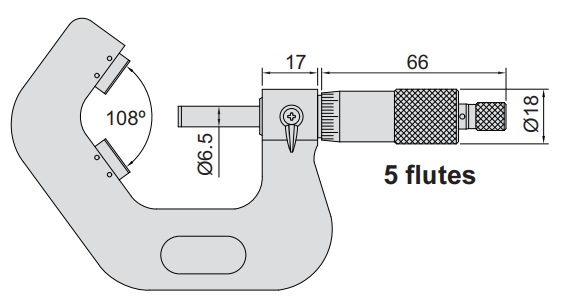

Dimensions:

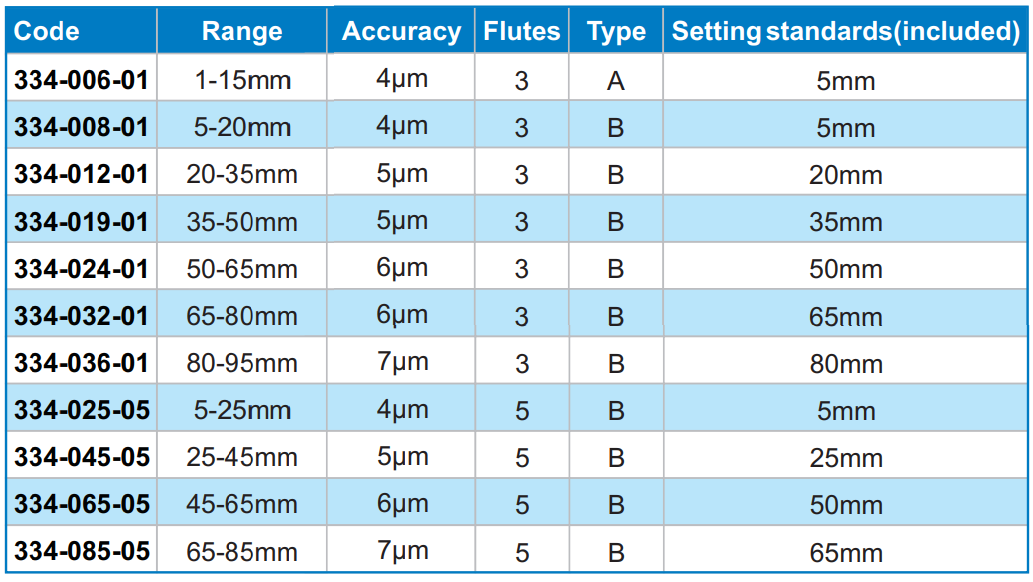

Setting standards:

Measurement scheme:

For more product information, please refer to the attached PDF data sheet below.
