ACCUD 340-002-02 MICROMETER 25-50mm TUBE SPHERICAL ANVIL, B TYPE (0.01mm)
Special analog micrometer with carbide measuring tips for measuring the thickness of pipe walls,… Read more
In stock 0 PCS
At the manufacturer 0 PCS
Order number: 340-002-02
Product description
Special analog micrometer with carbide measuring tips for measuring the thickness of pipe walls, domed surfaces, bearings and rings. Type B - ball contact on both sides.
Technical specification:
- Range: 25-50mm
- Accuracy: ±4μm
- Graduation: 0,01 mm
- Carbide measuring faces
- Setting standards are included
- Ratchet stop

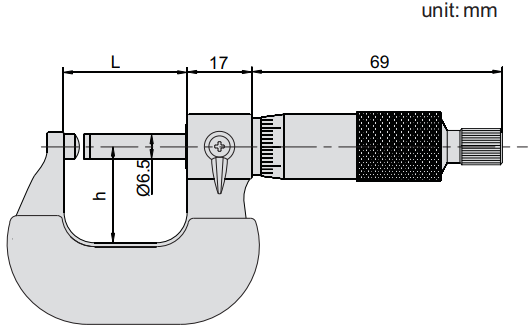

Dimensions:

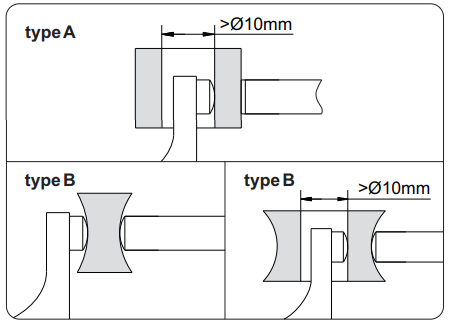

Application:

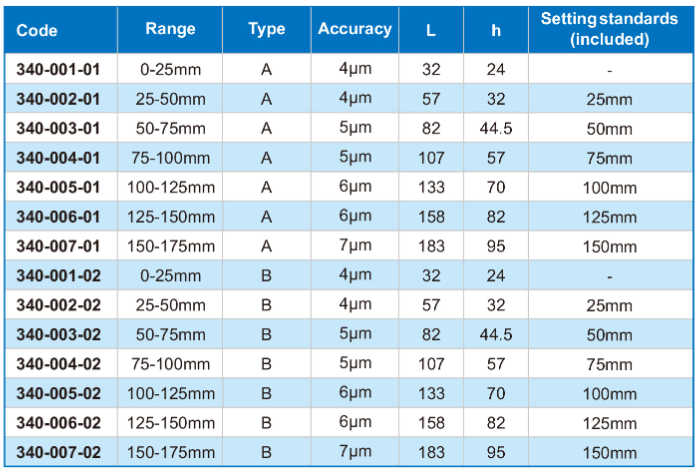

Setting standards:
Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.This item is option of INSIZE type : 3260-50SA
