ACCUD 342-002-01 MICROMETER 25-50mm SPINDLE DISK NON ROTATING (0.01mm)
Special analog micrometer with non-rotating disc measuring surfaces for measuring gears. Technical… Read more
In stock 0 PCS
At the manufacturer 0 PCS
Order number: 342-002-01
Product description
Special analog micrometer with non-rotating disc measuring surfaces for measuring gears.

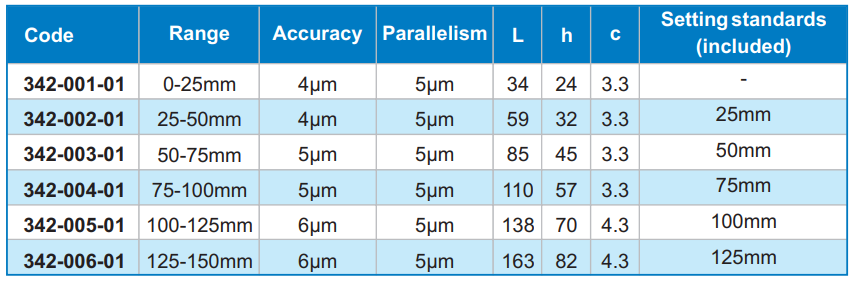

Technical specification:
- Range: 25-50mm
- Accuracy: ±4μm
- Graduation: 0,01 mm
- Non-rotating spindle
- Ratchet stop
- Supplied with setting standards

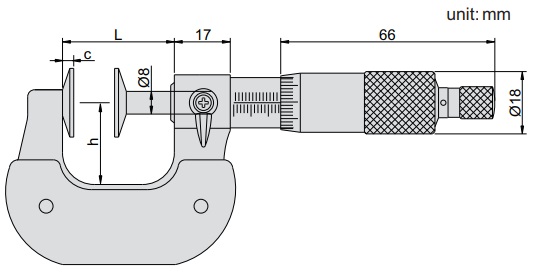

Dimensions:
Application:
Setting standards:

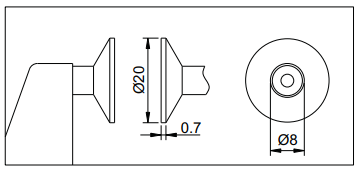

Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.This item is option of INSIZE type : 3294-50
