ACCUD 362-001-01 THREE POINTS INTERNAL MICROMETER, with setting ring / 6-8mm / 0.001mm
Three-contact cavity gauge, with adjustment ring and extension. Technical specification: Range: 6… Read more
In stock 1 PCS
At the manufacturer 1 PCS
Order number: 362-001-01
Product description
Three-contact cavity gauge, with adjustment ring and extension.
Technical specification:
- Range: 6-8mm
- Graduation: 0,001 mm
- Accuracy: 4μm
- Carbide measuring faces
- Ratchet stop
- Extension rod are included
- Setting rings are included
Dimensions:
Setting ring:
Extension rod:

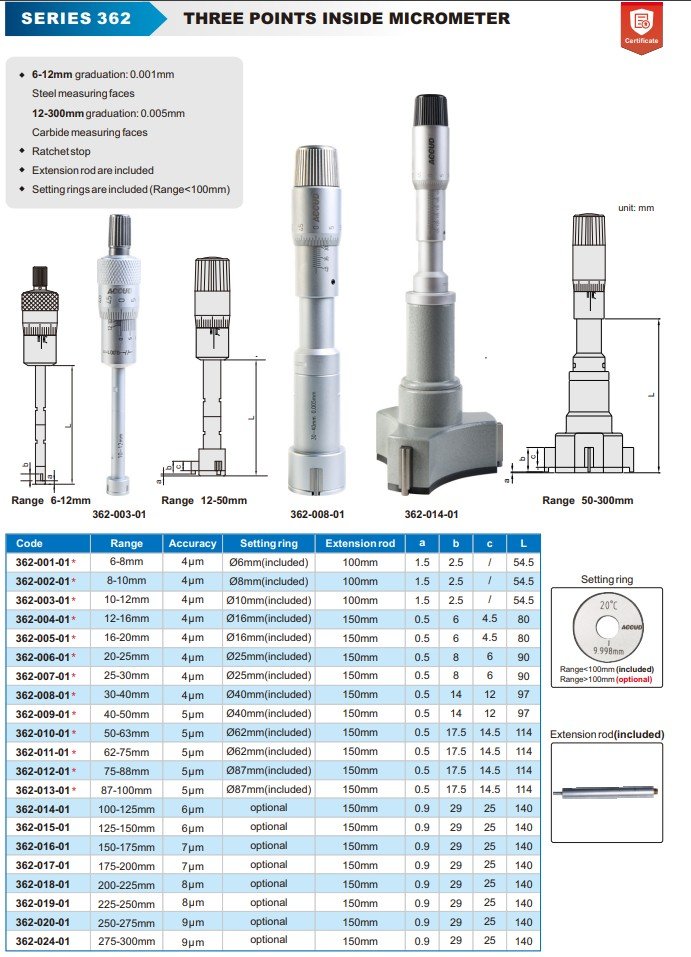

For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
This item is option of INSIZE type : 3227-8
