ACCUD 363-004-01 WIDE RANGE THREE POINTS INTERNAL MICROMETER, with setting ring / 70-100mm / 0.001mm
Three-contact cavity gauge with adjustment ring and carbide measuring surfaces. Technical… Read more
In stock 0 PCS
At the manufacturer 2 PCS
Order number: 363-004-01
Product description
Three-contact cavity gauge with adjustment ring and carbide measuring surfaces.
Technical specification:
- Range: 70-100mm
- Graduation: 0,01 mm
- Accuracy: 5μm
- Carbide measuring faces
- Ratchet stop
- Setting rings are included

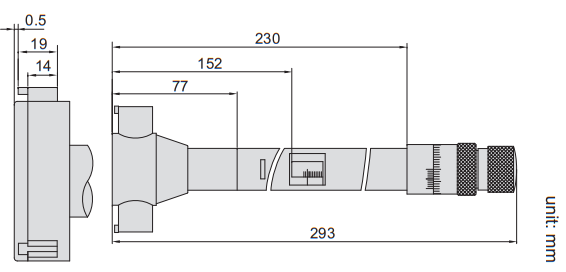

Dimensions:
Setting ring:
For more product information, please refer to the attached PDF data sheet below.
