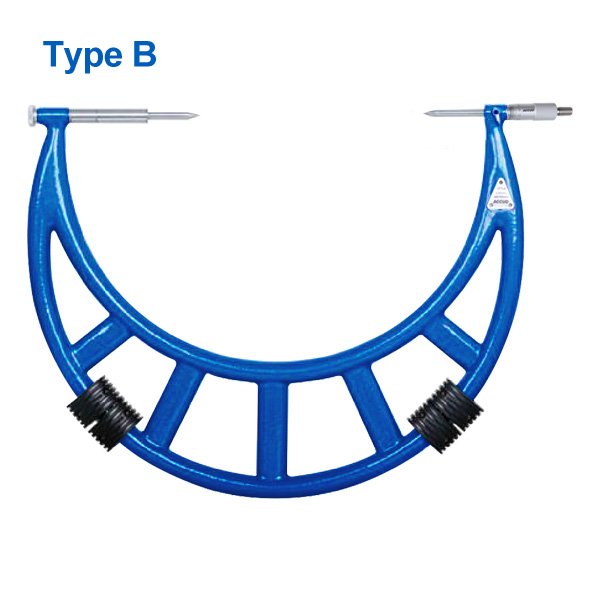

ACCUD 398-036-01 GEAR ROOT DIAMETER MICROMETER 800-900mm (0.01mm)
Special analog micrometer for measuring gears, including integrated ratchet. Technical… Read more
In stock 0 PCS
Order number: 398-036-01
Product description
Special analog micrometer for measuring gears, including integrated ratchet.

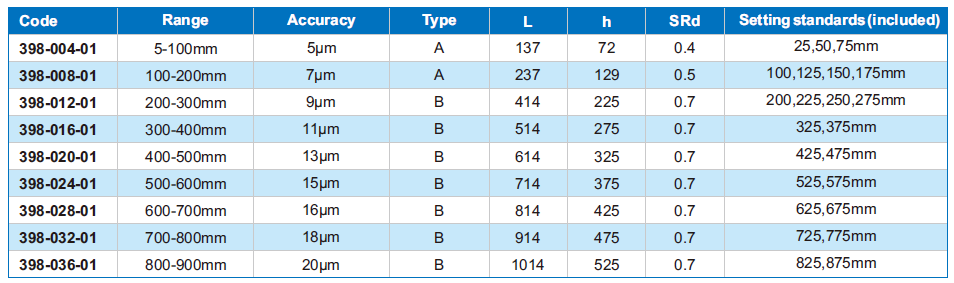

Technical specification:
- Range: 800-900mm
- Accuracy: 20μm
- Graduation: 0,01 mm
- Ratchet stop

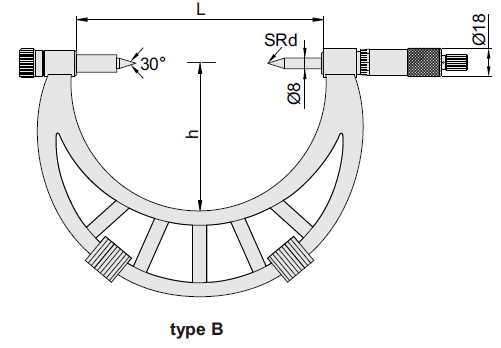

Dimensions:

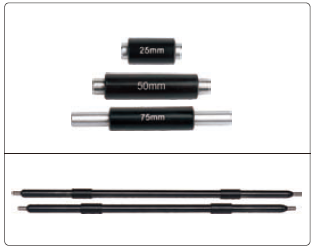

Setting standards (included)

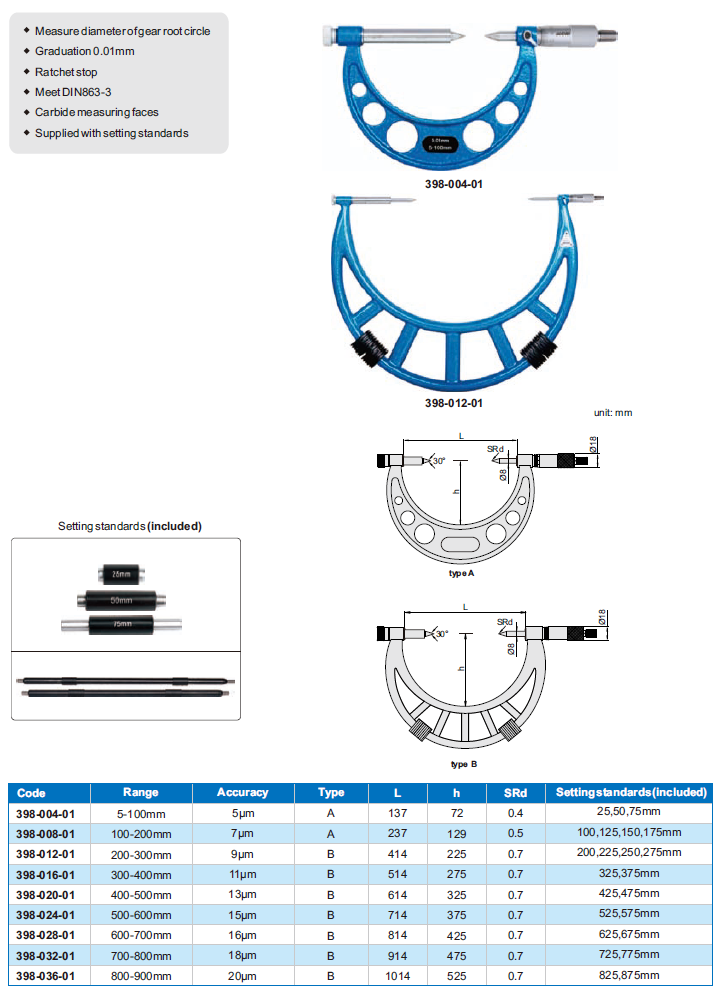

For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section
