  4. ACCUD 398E Analog Micrometers for Measuring Gears (in Inch)
  5. ACCUD 398-036-E01 GEAR ROOT DIAMETER MICROMETER 32-36" (.001")
Obrázek produktu ACCUD 398-036-E01 GEAR ROOT DIAMETER MICROMETER 32-36" (.001")
Obrázek produktu ACCUD 398-036-E01 GEAR ROOT DIAMETER MICROMETER 32-36" (.001") 1 Obrázek produktu ACCUD 398-036-E01 GEAR ROOT DIAMETER MICROMETER 32-36" (.001") 2 Obrázek produktu ACCUD 398-036-E01 GEAR ROOT DIAMETER MICROMETER 32-36" (.001") 3

ACCUD 398-036-E01 GEAR ROOT DIAMETER MICROMETER 32-36" (.001")

Special analog micrometer for measuring gears, including integrated ratchet. With dimensions in… Read more

In stock 0 PCS

Order number: 398-036-E01

Unable to order, purchase possible after login

Product description

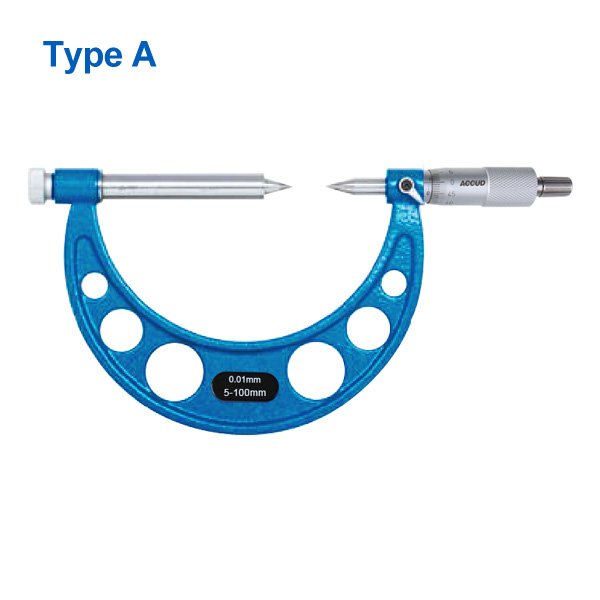

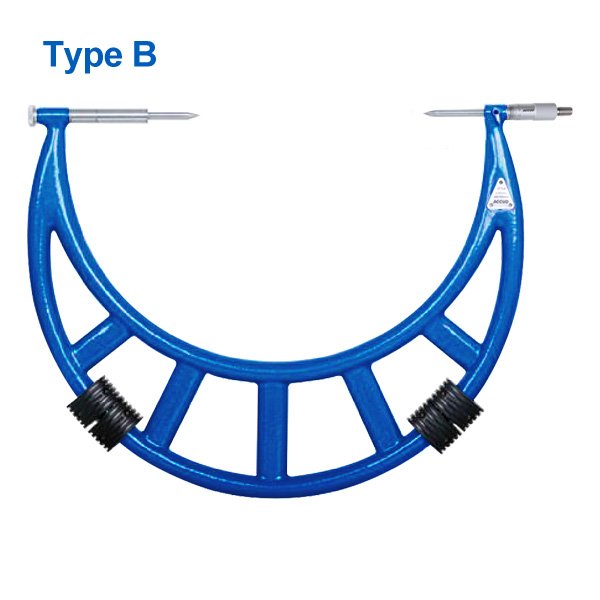

Special analog micrometer for measuring gears, including integrated ratchet. With dimensions in inches.

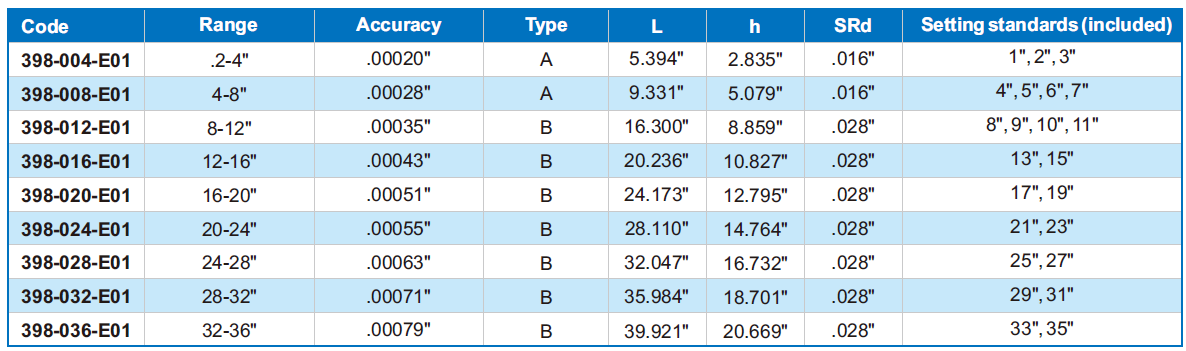

Technical specification:

  • Range: 32-36"
  • Accuracy: .00079"
  • Graduation: .001"
  • Ratchet stop

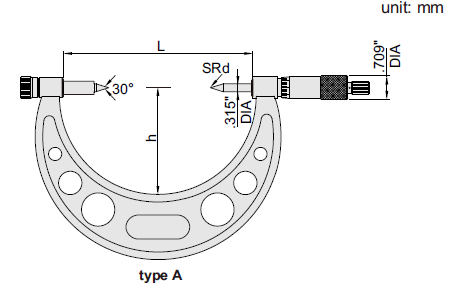

Dimensions:

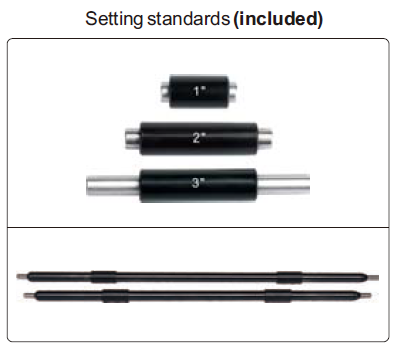

Setting standards (included)

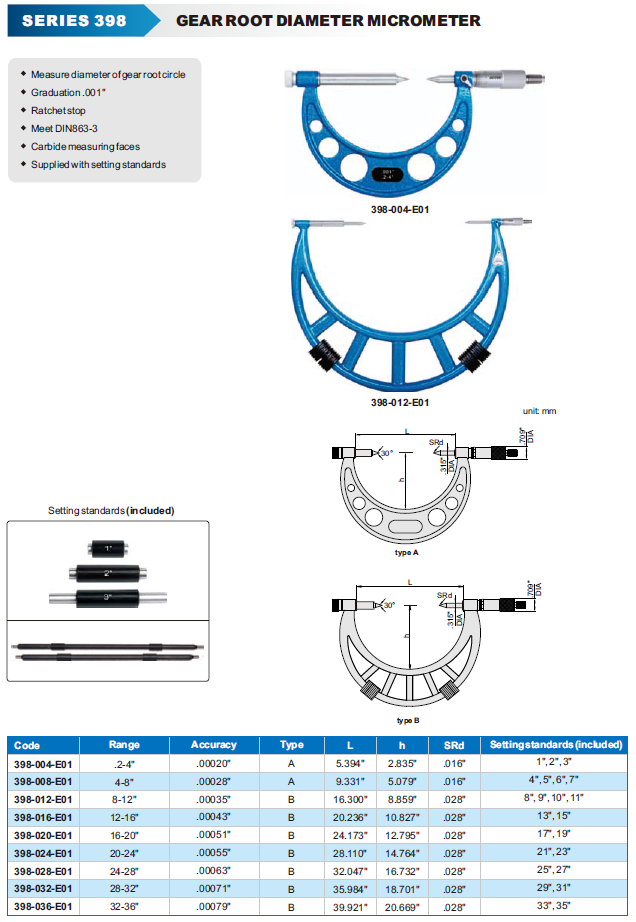

For more product information, please refer to the attached PDF data sheet below.
