ACCUD 431-175-11 DIAL SNAP GAUGE, DIAL range 150-175mm/6-7" ( indicator is not included )

Short Description: For quick Go/No-Go judgment of diameter of cylinders and shafts Anvil… Read more

In stock 0 PCS

At the manufacturer 1 PCS

Order number: 431-175-11

Unable to order, purchase possible after login

Product description


Short Description:

  • For quick Go/No-Go judgment of diameter of cylinders and shafts
  • Anvil retracting stroke: 3mm
  • Measuring force: 6-9N
  • Carbide measuring faces
  • Front edges of anvils are chamfered foreasy workpiece insertion

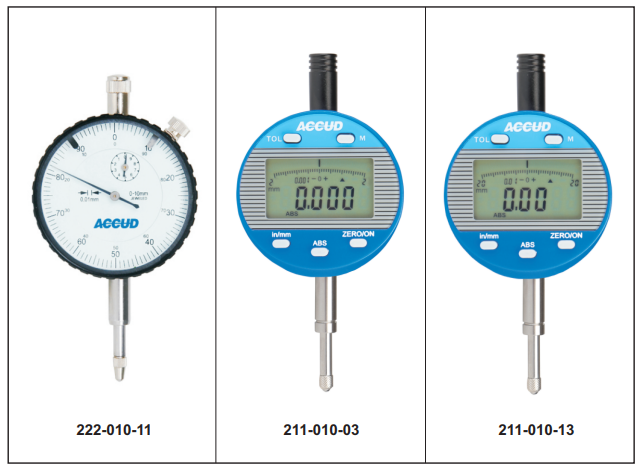

  • Optional indicators: –dial indicator, range 10mm, graduation 0.01mm (code 222-010-11) –digital indicator, range 12.7mm/0.5″, resolution 0.001mm/0.00005″ (code 211-010-03) –digital indicator, range 12.7mm/0.5″, resolution 0.01mm/0.0005″(code 211-010-13)

    For more information about the product see the attached PDF datasheet below.

    This item is option of INSIZE type : 2186-175

    • Accessories
