ACCUD 530-0170-11 3-WIRES, pin gage diameter Ø0.170 mm
Thread measuring wires are designed for use with standard outside micrometers to measure the pitch… Read more
In stock 0 PCS
Order number: 530-0170-11
Product description
Thread measuring wires are designed for use with standard outside micrometers to measure the pitch diameter of screw threads using the 3-wire method.
Technical specifications:
- Pin gage diameter: Ø 0.170 mm
- Applicable pitch: 0.2 mm, 0.25 mm, 0.3 mm
- Diameter accuracy: ±0.5 µm
- Cylindricity: 1 µm
- Hardness: HRC 60
- Scope of application: thread outside diameter ≤ 50 mm

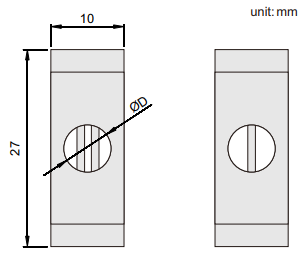

Dimensions:
For more product information, please refer to the attached PDF data sheet below.
