ACCUD 558-012-01 digital thread depth gauge M12x1.75-6H
Digital thread depth gauge Technical specification: Size: M12x1.75-6H Depth range (L): 5-55mm… Read more
In stock 0 PCS
Order number: 558-012-01
Product description
Digital thread depth gauge
Technical specification:
- Size: M12x1.75-6H
- Depth range (L): 5-55mm
- Accuracy: ±0.03mm
- Supplied with GO and NO-GO gages together
- Check GO and NO-GO while measuring the depth of thread
- Resolution: 0.01mm/0.0005"
- Button: mm/in, SET, preset(P+,P-)
- Automatic power off
Dimensions:

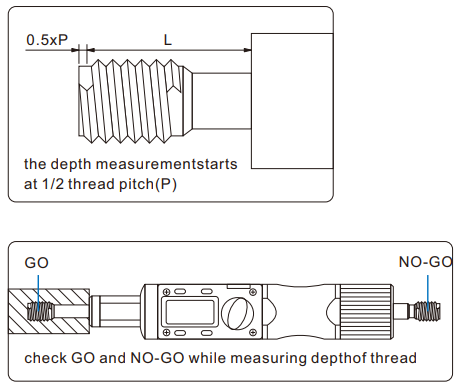

Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
