Set of V-blocks with roller bearings designed for precise and safe clamping of workpieces. The bearings prevent damage to the workpieces, and the robust design is suitable for heavy parts; the set includes two V-blocks.
ACCUD 628-080-02 ROLLER BEARING V-BLOCK SET, 150x80x100mm
Set of V-blocks with roller bearings designed for precise and safe clamping of workpieces.… Read more
In stock 0 PCS
Order number: 628-080-02
Product description

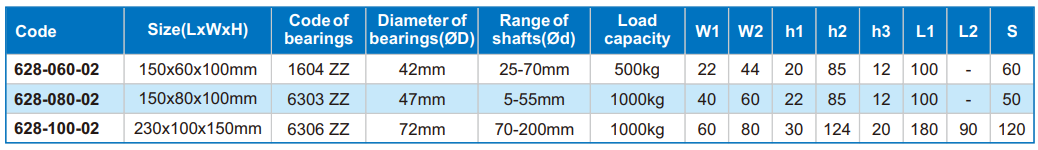

Technical specification:
- Size: 150x80x100mm
- Code of bearings: 6303 ZZ
- Diameter of bearings(ØD): 47mm
- Range of shafts(Ød): 5-55mm
- Load capacity: 1000kg
- Runout accuracy: 5µm
- Parallelism of bearings to bottom: 12µm
- Two V-blocks per set
- Workpieces don't get damaged due to bearings
- Suitable for heavy workpieces

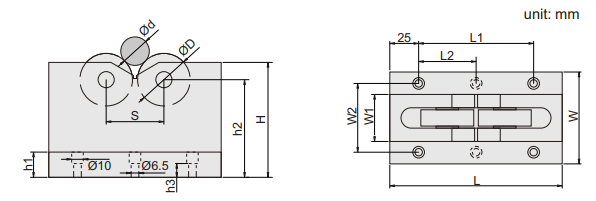

Dimensions:
Application:
For more product information, please refer to the attached PDF data sheet below.
