ACCUD 651-005-01 SINE BAR 130x25mm
Sine bar Technical specification: Roller distance: 100mm Table size: 130x25mm Accuracy of α… Read more
In stock 1 PCS
At the manufacturer 11 PCS
Order number: 651-005-01
Product description
Sine bar

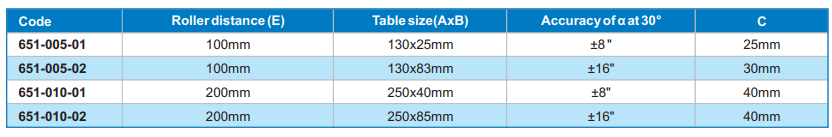

Technical specification:
- Roller distance: 100mm
- Table size: 130x25mm
- Accuracy of α at 30°: ±8 "

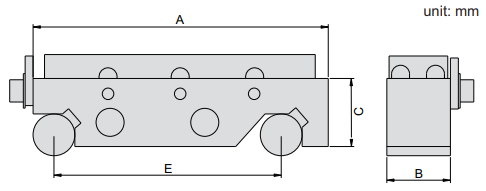

Dimensions:

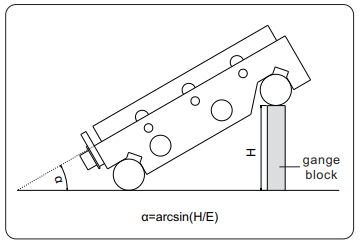

Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
This item is option of INSIZE type : 4150-130
