ACCUD 694-020-01N EDGE FINDER CONTACT POINT 10/4mm ( φ20mm )
Edge finder contact point Technical specification: Shank: Ø10mm Contact point (B): … Read more
In stock 3 PCS
At the manufacturer 18 PCS
Order number: 694-020-01N
Product description
Edge finder contact point
Technical specification:
- Shank: Ø10mm
- Contact point (B): Ø10mm
- Contact poin (C): Ø4mm
- Accuracy: 5µm
- Hardened shank and contact point
- Suitable for machine speed 400~600rpm

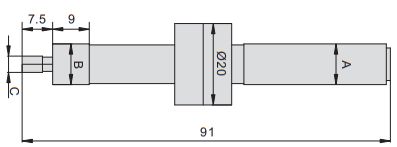

Dimensions:

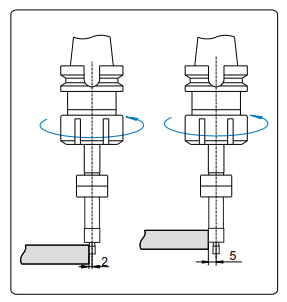

Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
This item is option of INSIZE type : 6562-4
