ACCUD 725-360-10 DIGITAL LEVEL AND PROTACTOR 600mm / 0-360° (90°X4)
Professional digital level and angle finder with a length of 600 mm and a measuring range… Read more
In stock 0 PCS
At the manufacturer 9 PCS
Order number: 725-360-10
Product description

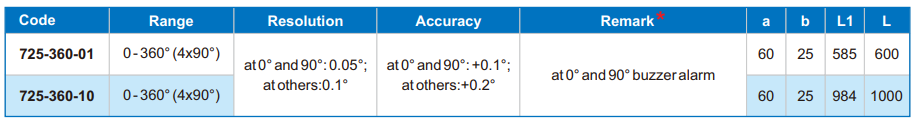

Technical specification:
- Range: 0 - 360° (4x90°)
- Accuracy : at 0° and 90°: +0.1°; at others:+0.2°
- Resolution: at 0° and 90°: 0.05°; at others:0.1°
- At 0° and 90° buzzer alarm
- Used as level and slope meter
- Buttons: on/off, ABS, hold, alarm unit, backlight
- With vertical and horizontal vials
- Absolute horizontion reference can save in memory for ever
- Two AAA batteries
- Magnetic base
- Aluminum frame
- Adjust the display direction automatically

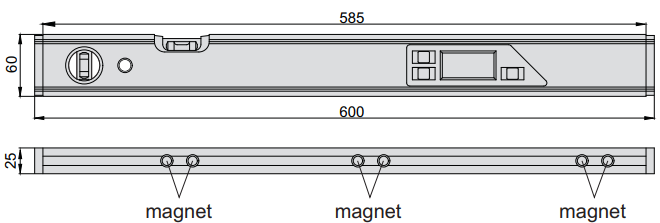

Dimensions:
Measurement scheme:

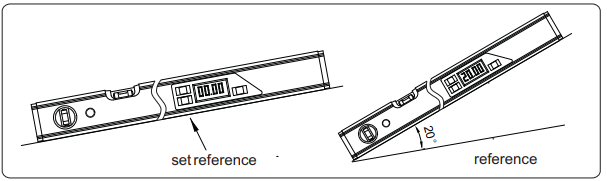

Use as protractor:

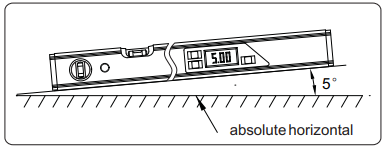

Use as level:

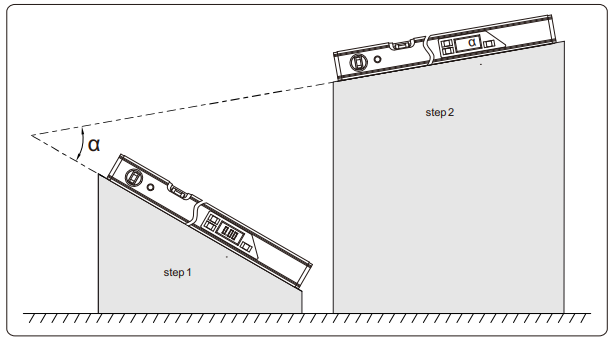

Measure the angle oftwo separate surfaces:
For more product information, please refer to the attached PDF data sheet below.
