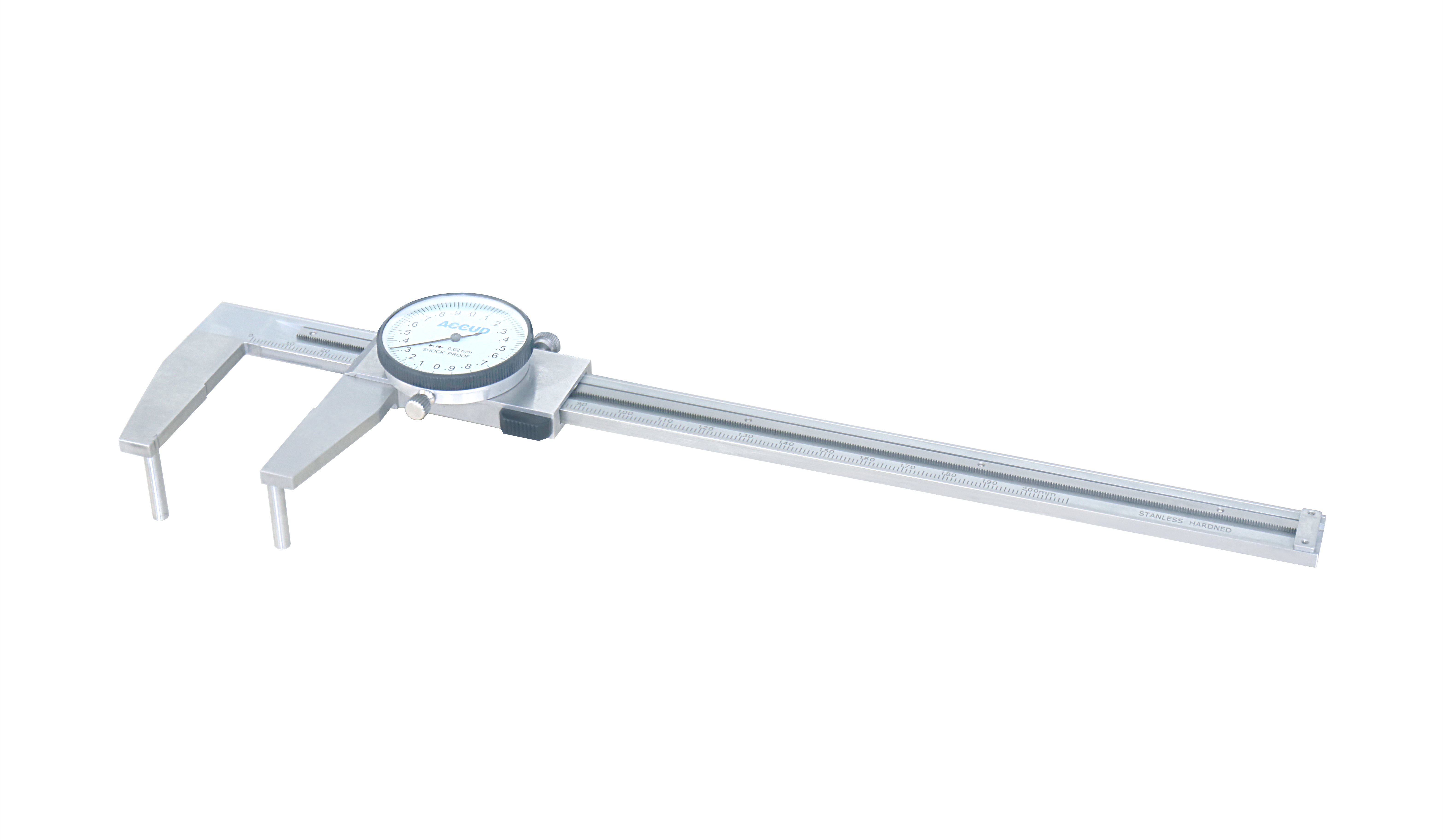

ACCUD 885-008-21 DIAL CALIPER FOR BORES WITH BARRRIER INSIDE
The caliper for measuring bores with internal barriers is a precision tool designed for measuring… Read more
Order number: 885-008-21
Product description
The caliper for measuring bores with internal barriers is a precision tool designed for measuring the diameters of bores that contain a barrier or another internal obstruction. It is equipped with a shockproof dial indicator with a resolution of 0.02 mm. The stainless steel construction ensures durability and reliability in everyday use.
Technical specification:
- Range (ØD): 8-200mm
- Diameter of barrier(Ød): <D-8mm(less than85mm)
- Accuracy: ±0.03mm
- Dial indicator graduation: 0.02mm

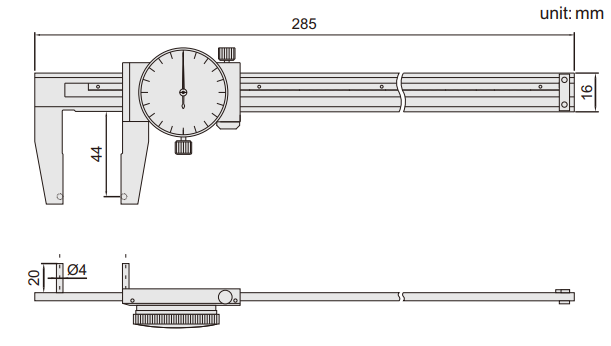

Dimensions:
Measurement scheme:

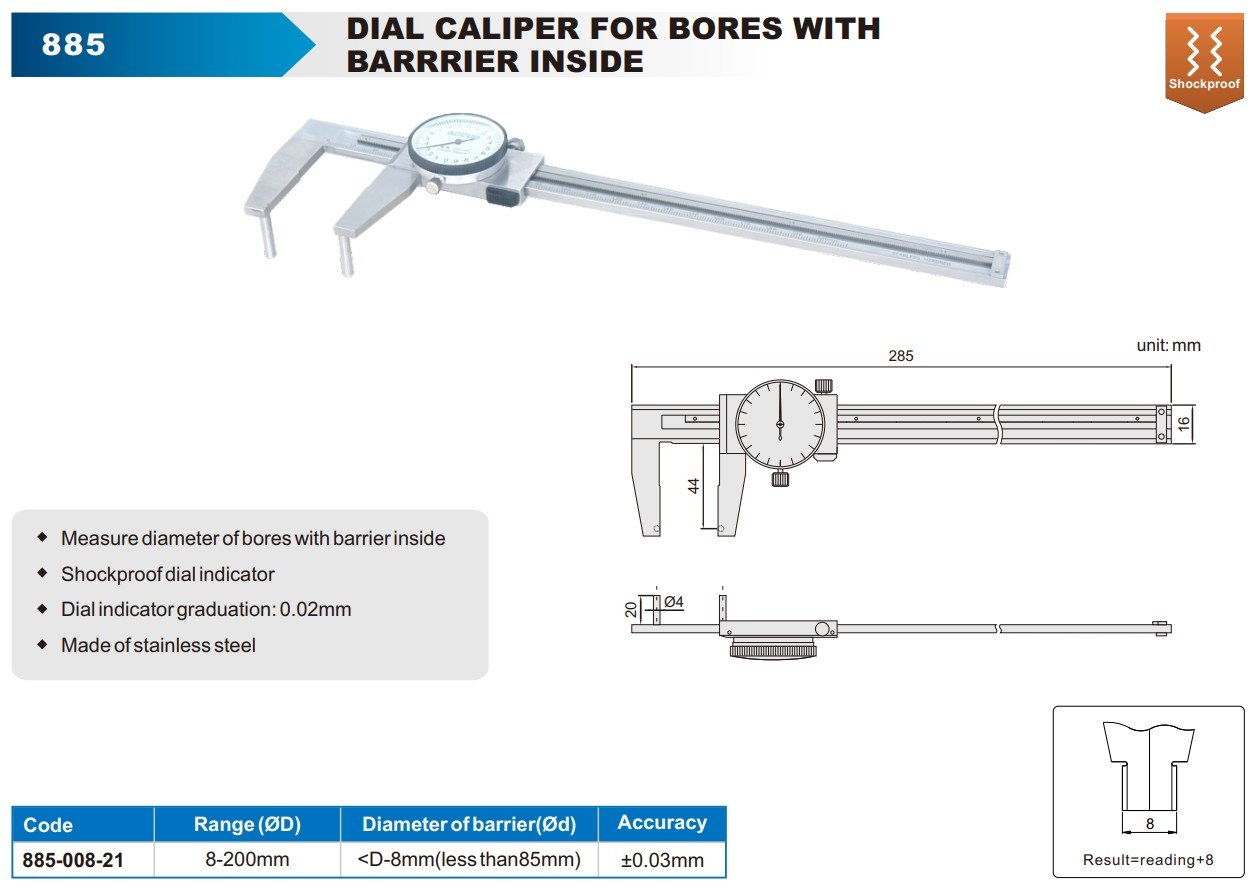

For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section
