ACCUD 895-008-11 DIGITAL CALIPER FOR BORES WITHBARRRIER INSIDE
The special ACCUD 895 Series digital caliper is designed for measuring the diameter of bores with… Read more
Order number: 895-008-11
Product description
The special ACCUD 895 Series digital caliper is designed for measuring the diameter of bores with an internal barrier, shoulder, or flange. Thanks to its specially shaped measuring jaws, it enables measurements in areas that are difficult to access with a standard caliper.
The caliper is made of stainless steel and offers a resolution of 0.01 mm / 0.0005". It features mm/in unit conversion, a SET function, and a preset function using the P+ and P− buttons. Automatic power on/off is also included for convenient operation.
Technical specifications:
- measurement of bore diameters with an internal barrier or shoulder
- measuring range: 8–200 mm
- resolution: 0.01 mm
- accuracy: ±0.03 mm
- maximum barrier diameter: < D − 8 mm, for diameters less than 85 mm
- mm/in unit conversion

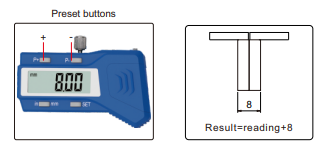

- SET and Preset functions (P+, P−)
- automatic power on/off
- data output for cable 100-03 or 100-04
- stainless steel construction
- powered by CR2032 battery
- non-waterproof
Dimensions:
More information:
For more product information, please refer to the attached PDF data sheet below.
