ACCUD ACCUHITE1000 1D PRECISION HEIGHT GAUGE 1000mm

High-precision linear altimeter suitable for one-dimensional measurements.The probe moves up and… Read more

In stock 0 PCS

At the manufacturer 1 PCS

Order number: ACCUHITE1000

Unable to order, purchase possible after login

Product description

High-precision linear altimeter suitable for one-dimensional measurements.
The probe moves up and down automatically.
The altimeter is equipped with a built-in air compressor, which ensures smooth movement after surface descent.
With rechargeable battery for 10 hours of operation.

Technical specification:

  • Range: 0-1000mm
  • Expandable range: 1315mm
  • Resolution: 0.5µm, 1µm, 10µm
  • Accuracy: 3+L/250µm Lis measuring length in mm
  • Repeatability (with standard probe): 0.0015 mm on plane and 0.003 mm on bore
  • Measuring force: 1±0.2N
  • Output: USB or RS232
  • Power supply: rechargable battery
  • Working temperature: 10°C - 40°C
  • Weight: 21kg

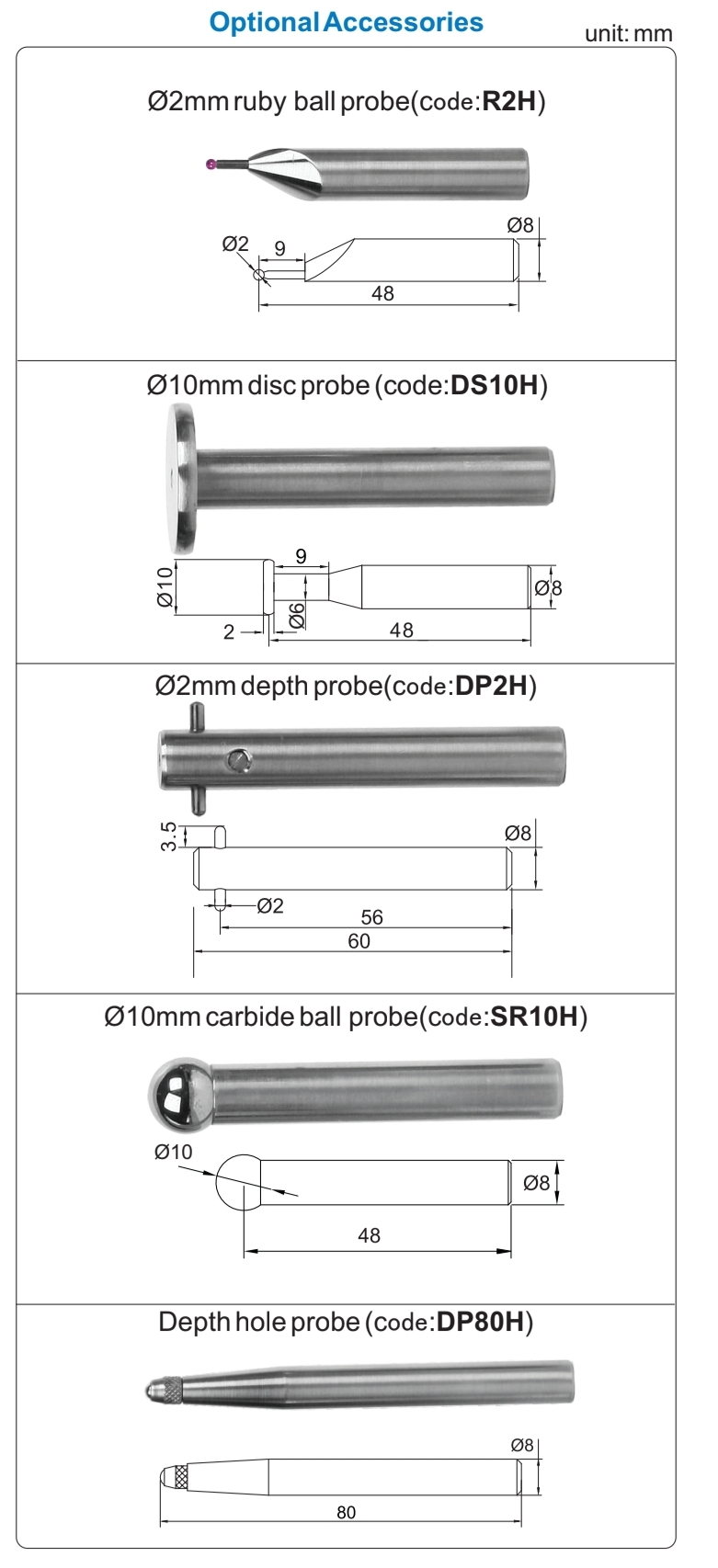

Optional accessories:

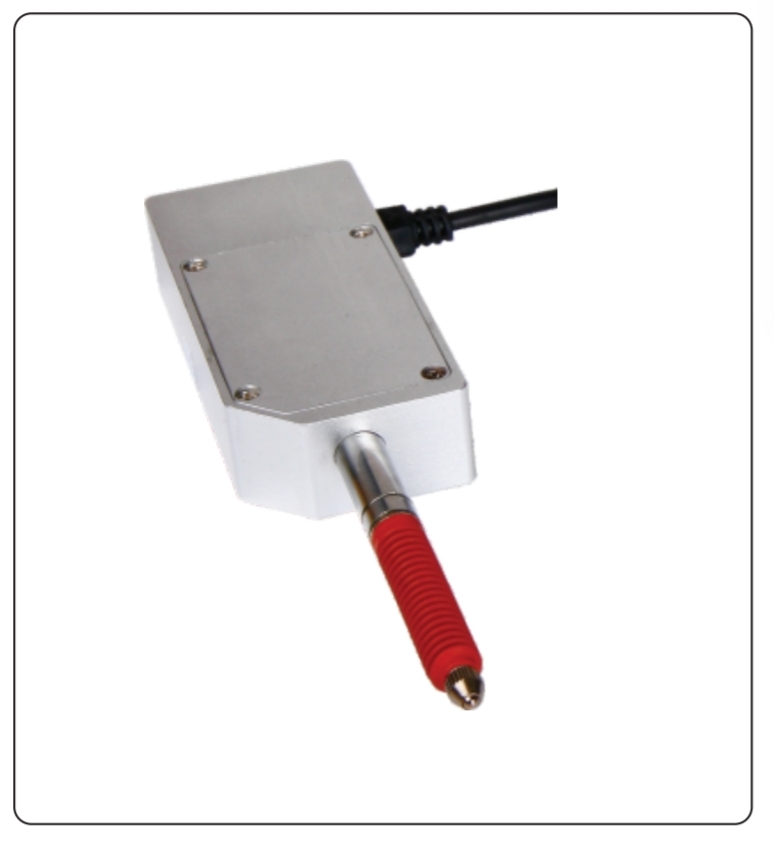

Squareness probe (optional, code-SQ10):

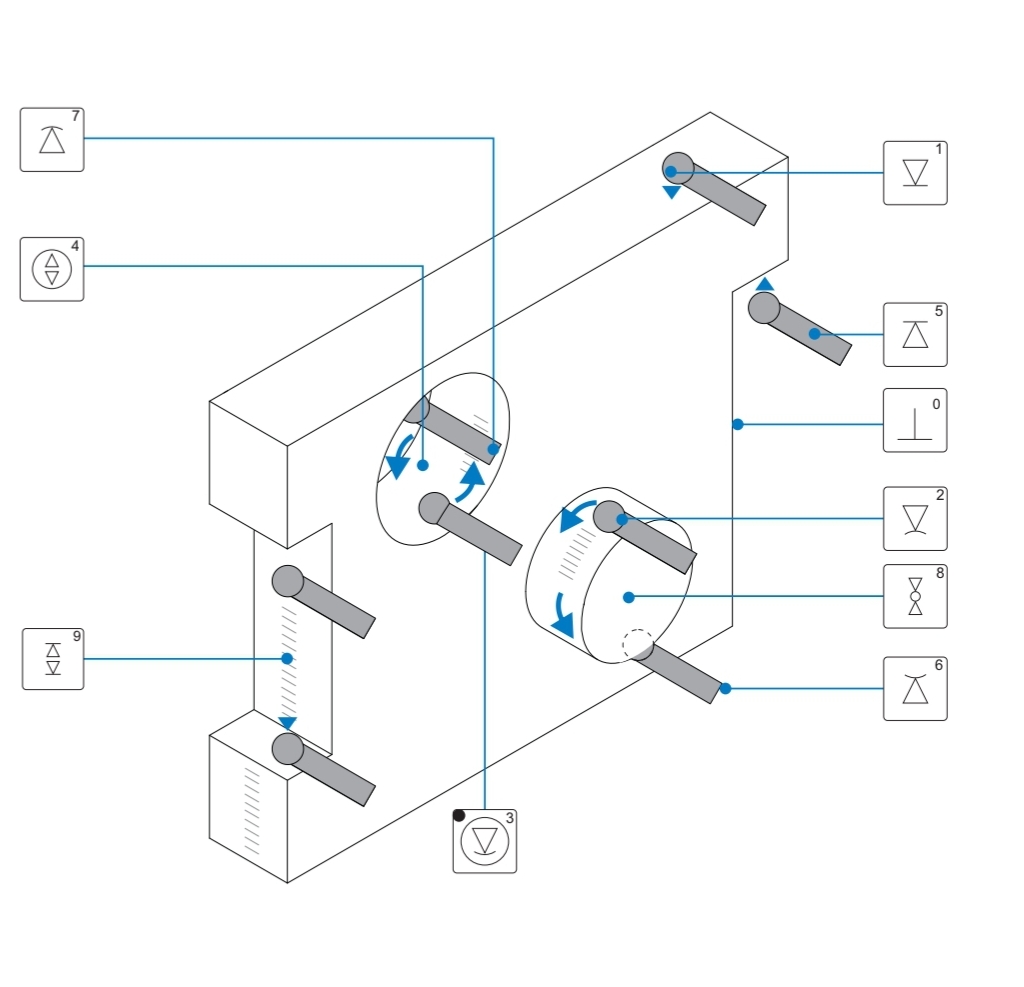

Measurement scheme:



For more product information, please refer to the attached PDF data sheet below.

Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
