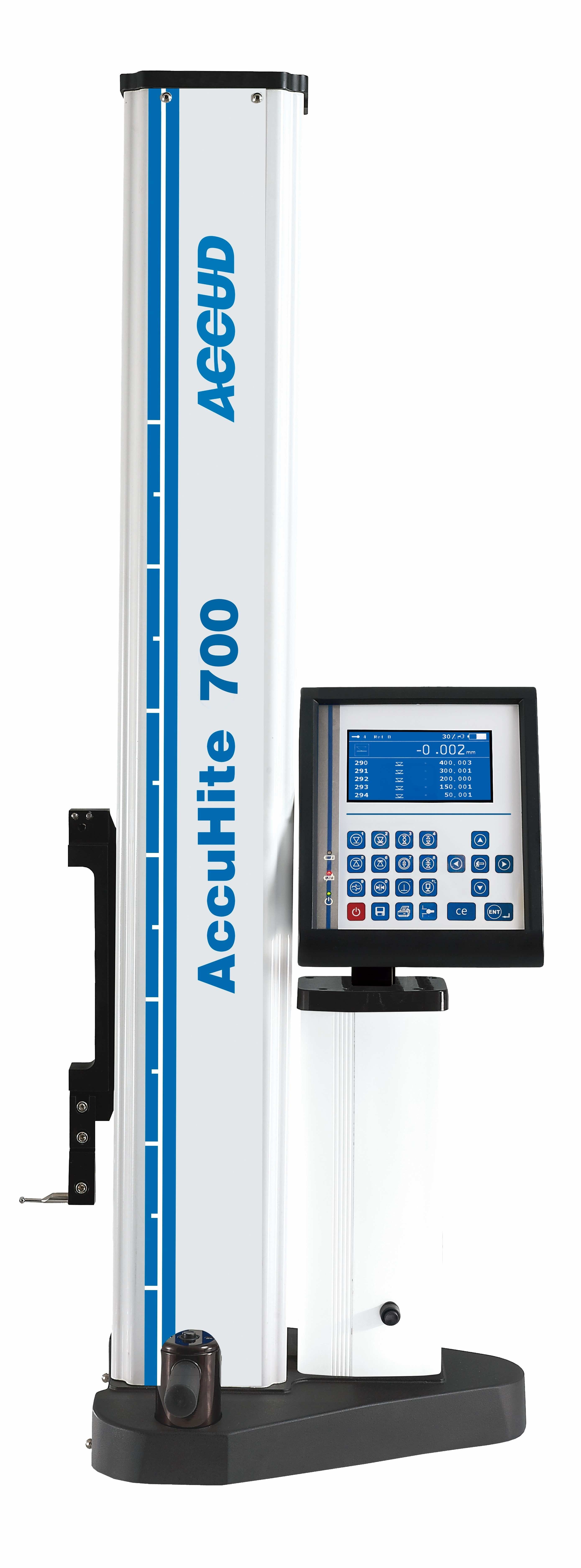

ACCUD ACCUHITE700 1D PRECISION HEIGHT GAUGE 700mm
High-precision linear altimeter suitable for one-dimensional measurements.The probe moves up and… Read more
In stock 0 PCS
At the manufacturer 13 PCS
Order number: ACCUHITE700
Product description
High-precision linear altimeter suitable for one-dimensional measurements.
The probe moves up and down automatically.
The altimeter is equipped with a built-in air compressor, which ensures smooth movement after surface descent.
With rechargeable battery for 10 hours of operation.
The probe moves up and down automatically.
The altimeter is equipped with a built-in air compressor, which ensures smooth movement after surface descent.
With rechargeable battery for 10 hours of operation.
Technical specification:
- Range: 0-700mm
- Expandable range: 1015mm
- Resolution: 0.5µm, 1µm, 10µm
- Accuracy: 3+L/250µm Lis measuring length in mm
- Repeatability (with standard probe): 0.0015 mm on plane and 0.003 mm on bore
- Measuring force: 1±0.2N
- Output: USB or RS232
- Power supply: rechargable battery
- Working temperature: 10°C - 40°C
- Weight: 21kg
Optional accessories:
Squareness probe (optional, code-SQ10):
Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
