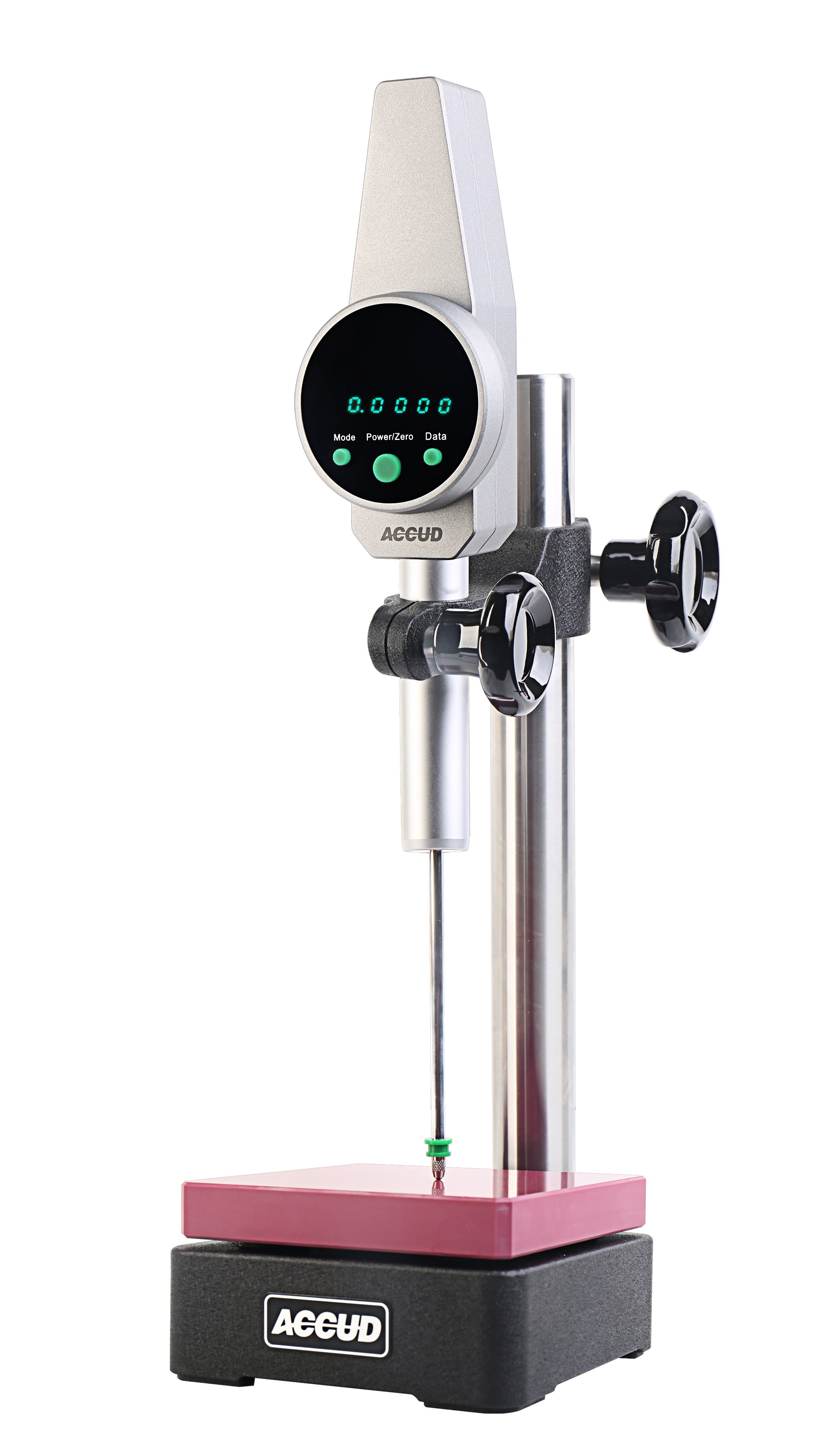

ACCUD HG100E PRECISION HEIGHT GAUGE 100mm CERAMIC STAND ( 3µm )
High precision height gauge with a range of 100mm and a ceramic stand.The worktable is made of… Read more
In stock 0 PCS
At the manufacturer 2 PCS
Order number: HG100E
Product description
High precision height gauge with a range of 100mm and a ceramic stand.
The worktable is made of ceramic.
Easy conversion between metric and inch 8 bits.
The worktable is made of ceramic.
Easy conversion between metric and inch 8 bits.
Technical specification:
- Measuring range: 0-100mm
- Accuracy: 3µm
- Resolution: 0.5µm/1µm (adjustable)
- Repeatibility: 1µm
- Tip force : ≤1.6N
- Dimension of working table : 130x130mm
- Flatness of working table: 1.5µm
- Power supply: 5V/1A adapter
- Working temperature: 0°C - 40°C
- Weight: 11.6kg
- Response speed: max.5000mm/sec
- Power off automatically
- Data output (USB port)
- Optional accessories series 270

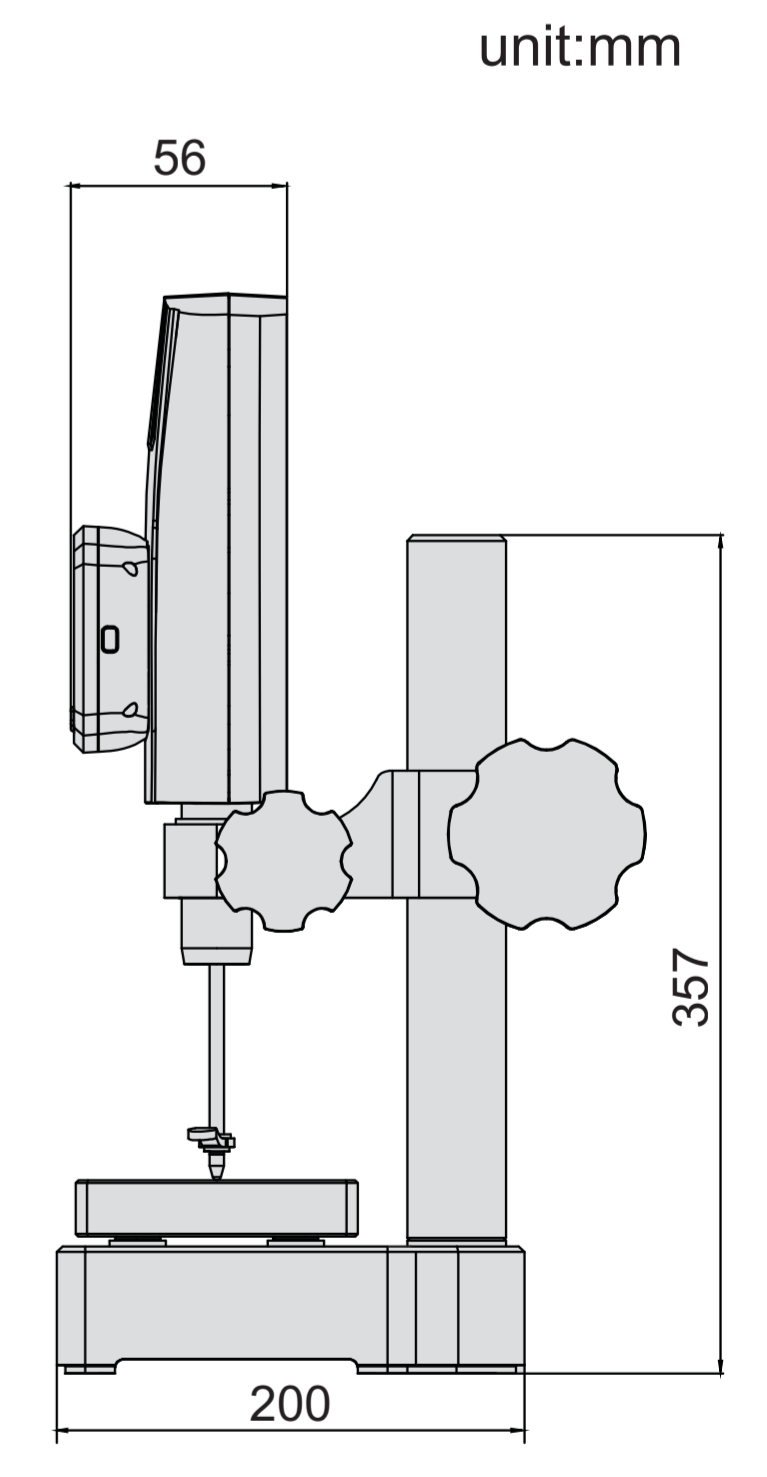

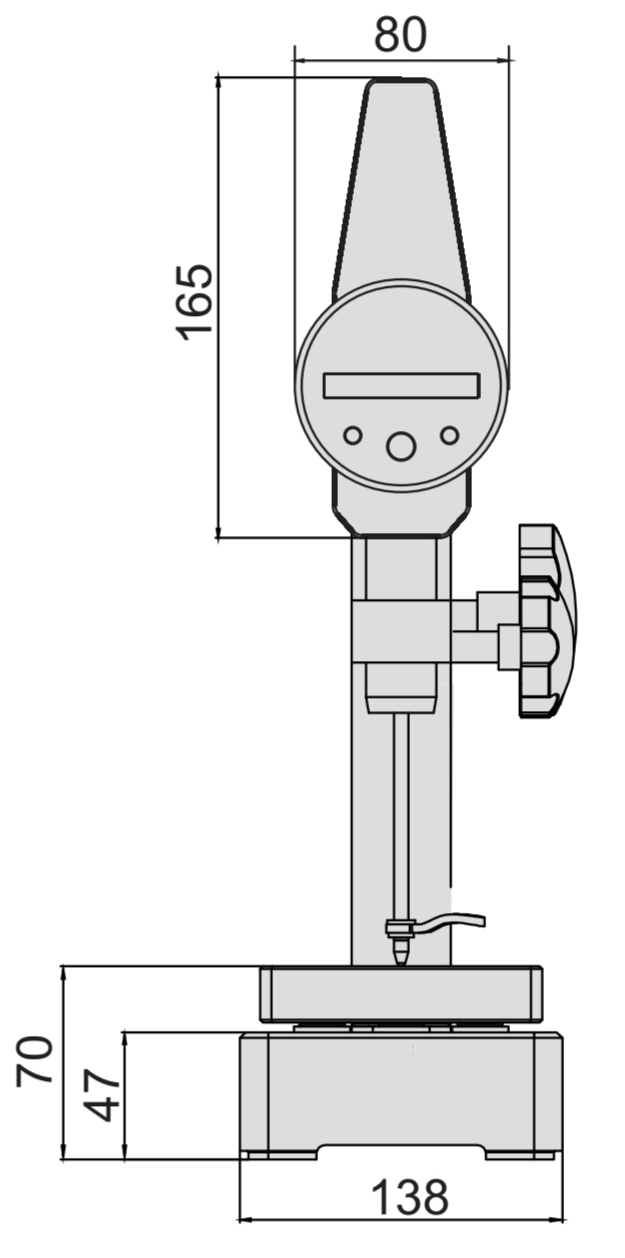

Dimensions:

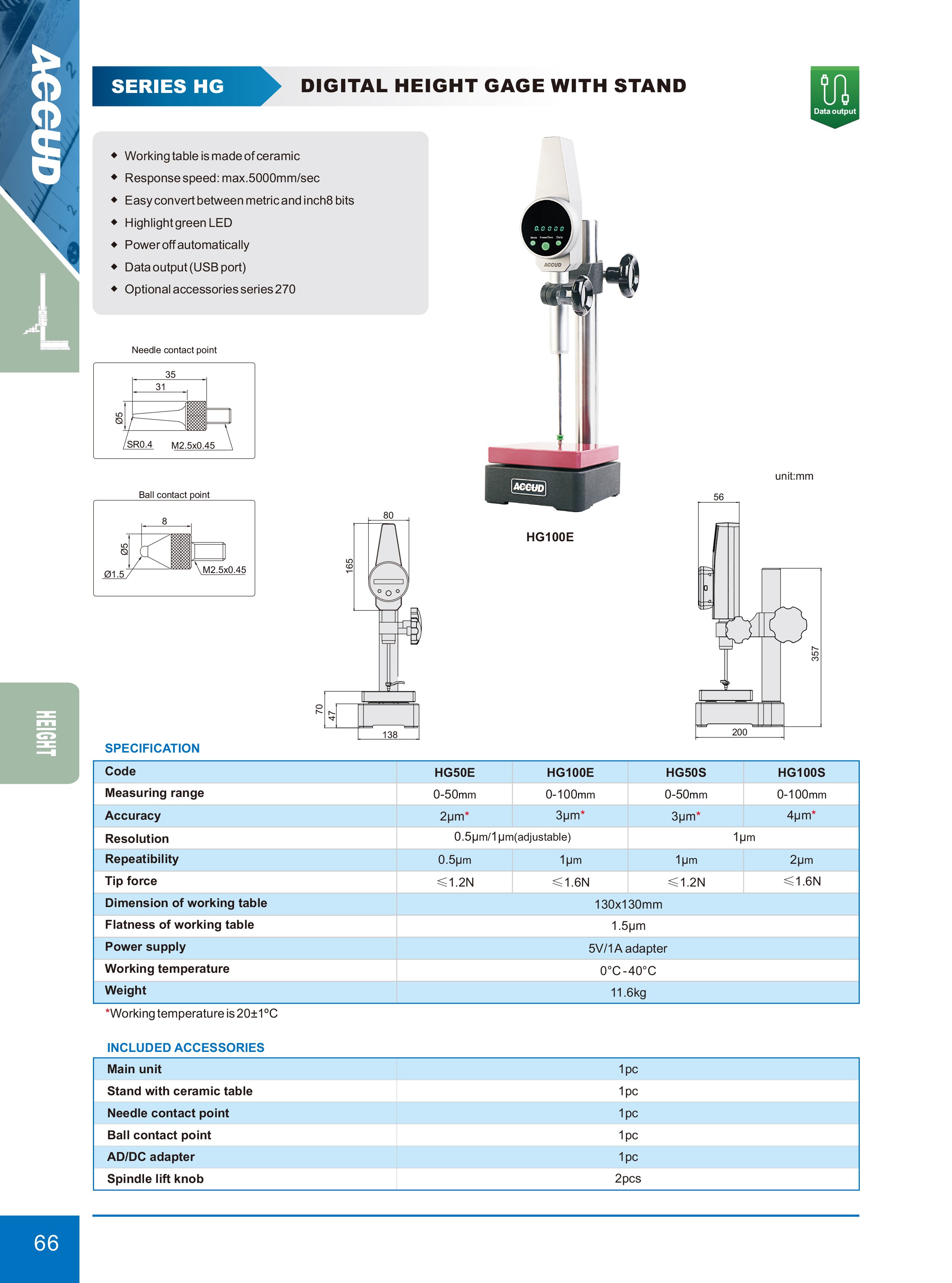

For more product information, please refer to the attached PDF data sheet below.
