ACCUD HG50E PRECISION HEIGHT GAUGE 50mm CERAMIC STAND ( 2µm )
High precision height gauge with a range of 50mm and a ceramic stand.The worktable is made of… Read more
In stock 0 PCS
At the manufacturer 3 PCS
Order number: HG50E
Product description
High precision height gauge with a range of 50mm and a ceramic stand.
The worktable is made of ceramic.
Easy conversion between metric and inch 8 bits.
The worktable is made of ceramic.
Easy conversion between metric and inch 8 bits.
Technical specification:
- Measuring range: 0-50mm
- Accuracy: 2µm
- Resolution: 0.5µm/1µm (adjustable)
- Repeatibility: 0,5µm
- Tip force : ≤1.2N
- Dimension of working table : 130x130mm
- Flatness of working table: 1.5µm
- Power supply: 5V/1A adapter
- Working temperature: 0°C - 40°C
- Weight: 11.6kg
- Response speed: max.5000mm/sec
- Power off automatically
- Data output (USB port)
- Optional accessories series 270

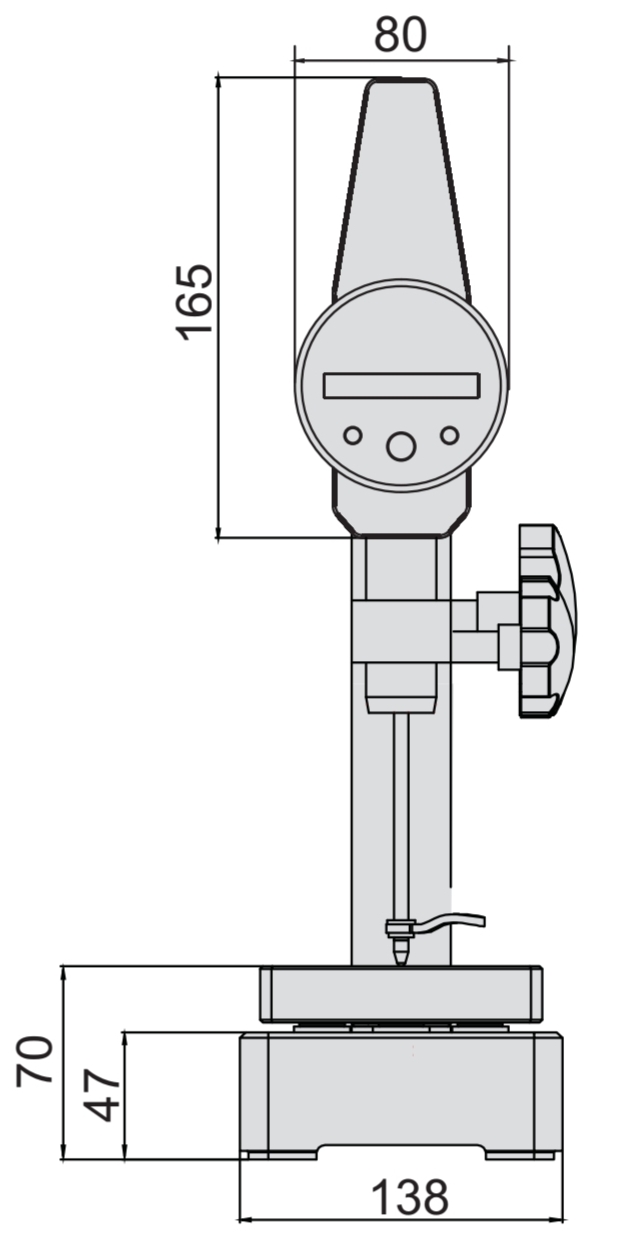

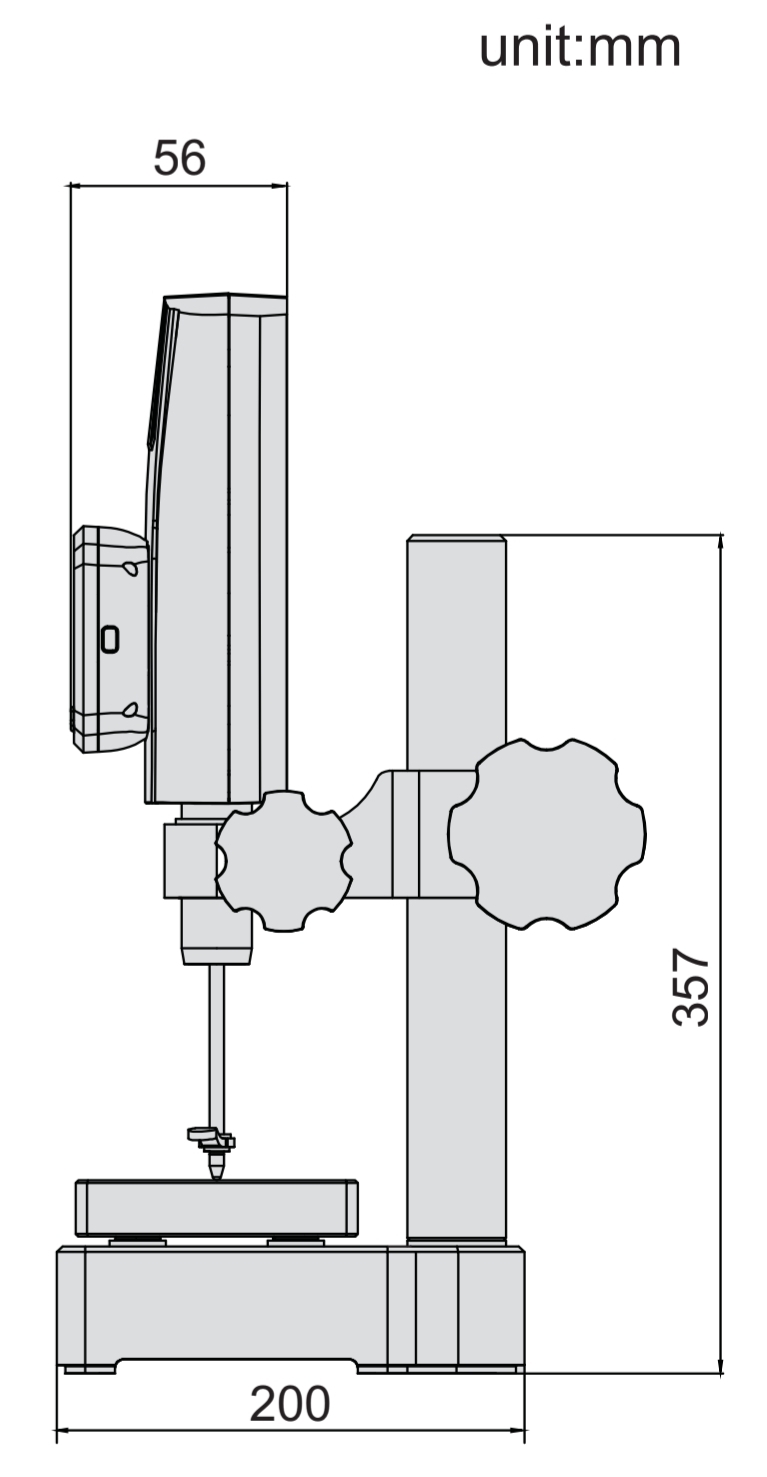

Dimensions:
For more product information, please refer to the attached PDF data sheet below.
