ACCUD HSC AUTOMATIC SHORE HARDNESS TESTER
Automatic shore hardness tester can measure plastic, rubber, sponge with different hardness.… Read more
In stock 0 PCS
At the manufacturer 0 PCS
Order number: HSC
Product description
Automatic shore hardness tester can measure plastic, rubber, sponge with different hardness. Include three indenters (type A, D, OO) and touch screen, with data output.
Technical specification:
- Probe moving range: 160mm
- Stage moving range(X): 80mm
- Loading control: Stepping motor
- Loading force: Spring force
- Max. workpiece height: 120mm
- Accuracy: ±1
- Resolution: 0.1
- Output: USB
- Power supply: DC24V/5A

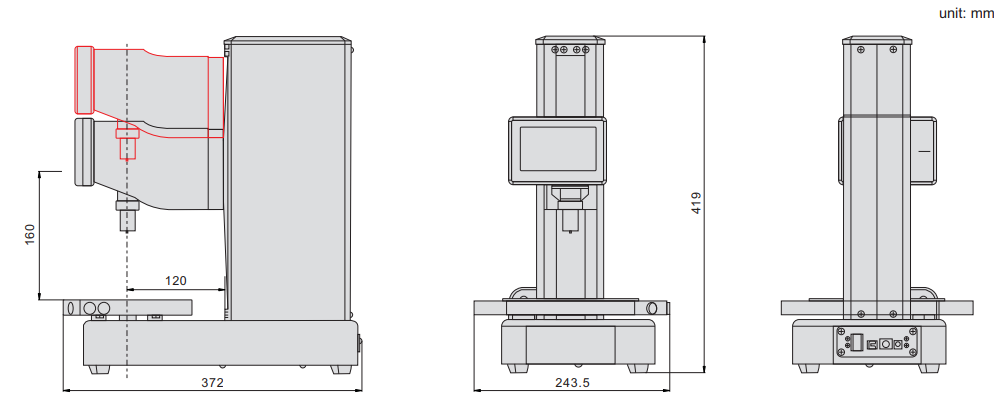

Dimensions:
Included accessories:
- Main unit: 1pc
- AD/DC adapter: 1pc
- Software and USB cable: 1pc.each
- A/D/OO indenter: 1pc.each
- Calibration block: 2pcs
For more product information, please refer to the attached PDF data sheet below.
