ACCUD ITC120 INFRARED THERMAL IMAGING CAMERA ( range -10 - 120°C )
Infrared thermometer for quick finding the current leakage or short circuit position when reparing… Read more
In stock 0 PCS
At the manufacturer 0 PCS
Order number: ITC120
Product description
Infrared thermometer for quick finding the current leakage or short circuit position when reparing PCBA. For simulating the heating condition of the PCBA in a closed environment when designing. With high limit alarm. With software, data can be exported to Excel.
Technical specification:
- Resolution: 260x200
- Measuring range: -10ºC - 120ºC
- Accuracy: ±3º
- Frame rate: 25Hz
- Field of view: Horizontal :34.4º,vertical: 25.8º
- Lens: Ø4mm
- Emissivity: 0.1-1(adjustable)
- Data output: USB (Type C)
- Working temperature: -10ºC-55ºC
- Protection level: IP54
- Power supply: DC 5V
- Size: 220×172×241mm
- Weight: 1.6kg
Included accessories:
- Main unit: 1pc
- Stand: 1pc
- USB cable and software: 1pc
- AC/DC adapter: 1pc

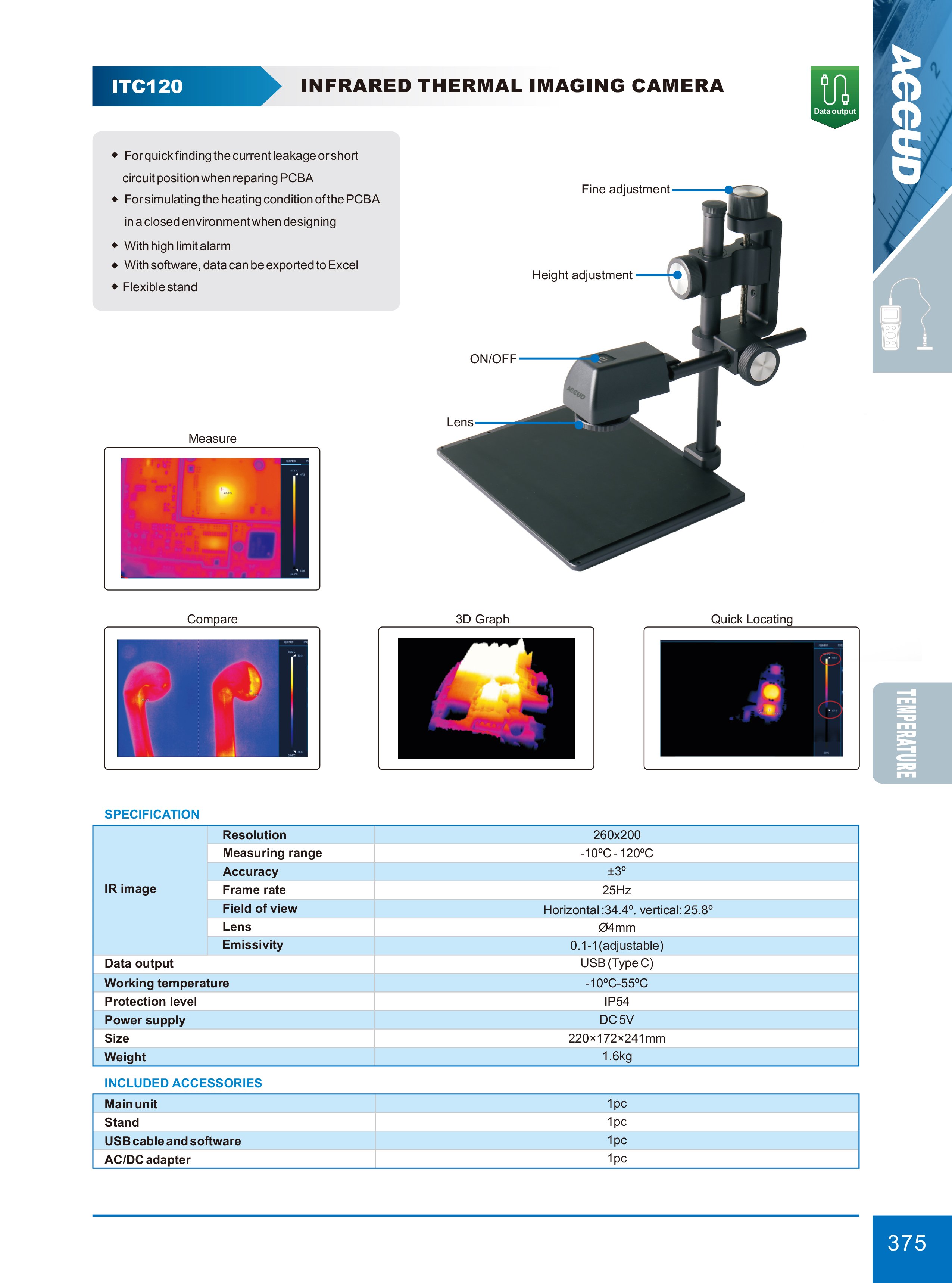

For more product information, please refer to the attached PDF data sheet below.
