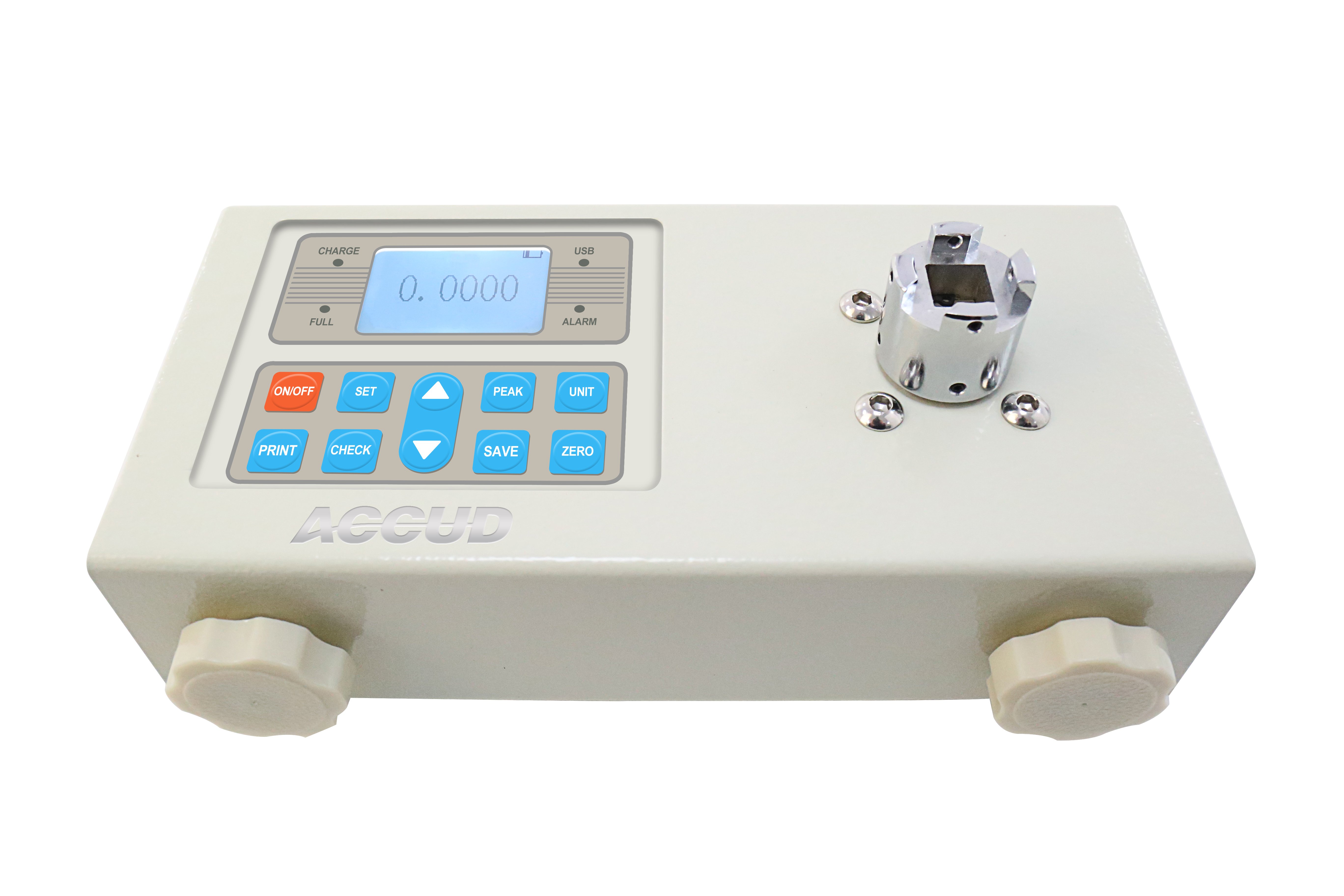

ACCUD TTR10 DIGITAL TORQUE METER 10N.m
The digital torque meter is designed for precise testing of torque screwdrivers, both electric and… Read more
Order number: TTR10
Product description
The digital torque meter is designed for precise testing of torque screwdrivers, both electric and pneumatic. It enables measurement in both clockwise and counterclockwise directions and offers Peak (maximum value capture) and Track (continuous measurement) working modes.
Thanks to a high sampling frequency of 1920 Hz, it ensures accurate capture of peak values. The device supports multiple units (N·m, lb·in, kgf·cm) and allows setting of lower and upper limits with automatic evaluation.
It is equipped with an RS232 serial output for connection to a PC, enabling monitoring and processing of measured values via software. The device also features an automatic shut-off function to save energy.
Technical specifications:
- For testing the accuracy of torque screwdrivers like eletric or pneumatic and screwdrivers
- Clockwise and counter-clockwise operation
- Peak and track working modes
- High sampling frequency (1920 Hz) for accurate peak capture
- Unit: N.m, Ib.in, kgf.cm
- Low and high limits setting with judgement
- Serial RS232 output, connect to PC to view torque value by software
- Turn off automatically
- Range: 10N.m
- Resolution: 0.001N.m
- Accuracy: ±1% (10%~100% range)
- Maximum test speed: 3000rpm
- Number of memory: 99 groups
- Power supply: built-in rechargeable battery, can be used for 10 hours
- Dimension: 230x123x65mm
- Weight: 2kg
Included accessories:
- Main unit: 1pc
- Run down adapter: 1pc
- Bits adaptor: 4pcs
- Power adapter: 1pc
- RS232 cable and software: 1pc

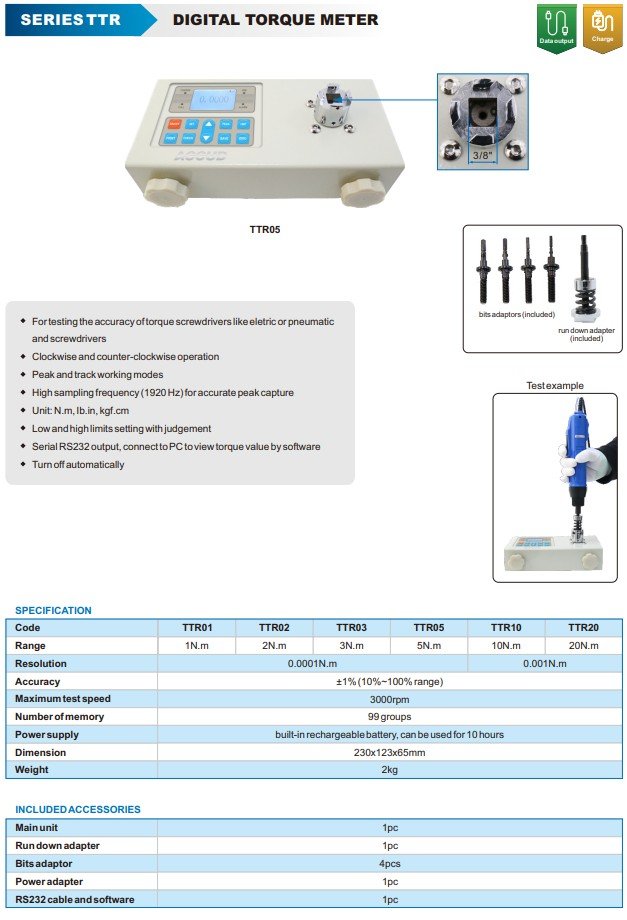

For more product information, please refer to the attached PDF data sheet below.
